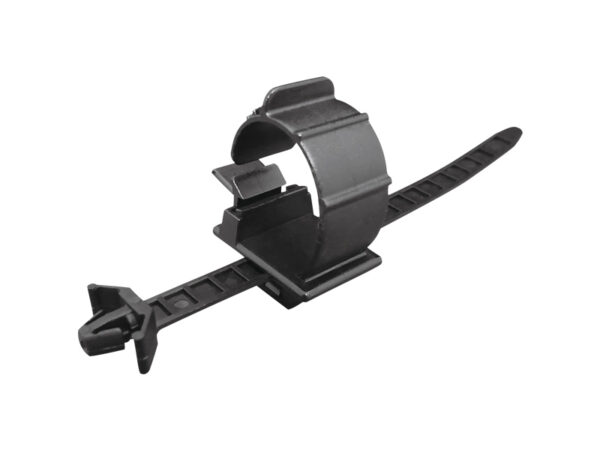

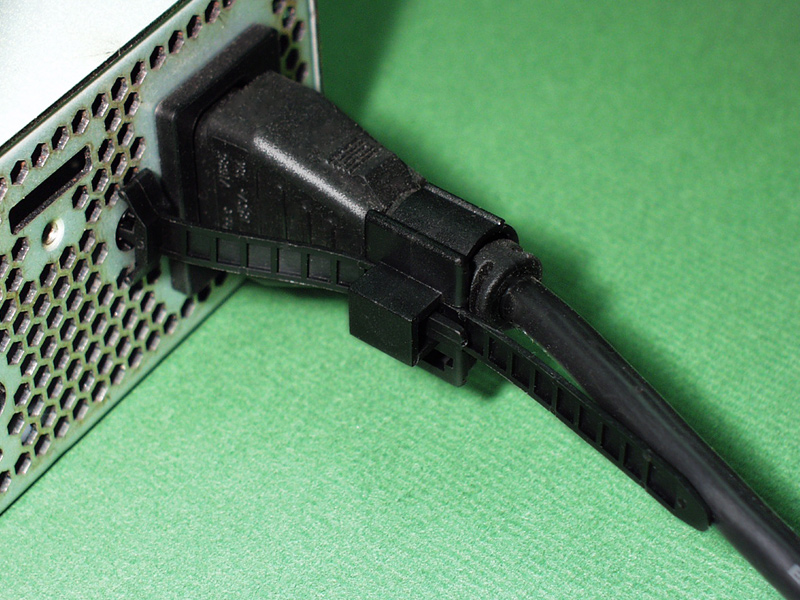

Round adjustable Lock Wire Clip with slider mechanism for securing an IEC AC power connector to a Chassis Push-Mount strap. Material Nylon 66. Color Black. Prevents accidental disconnection of the cord
SWPL-27
Power Cord Retention Clamp
Nylon 66
94V-2, 94V-0
Black

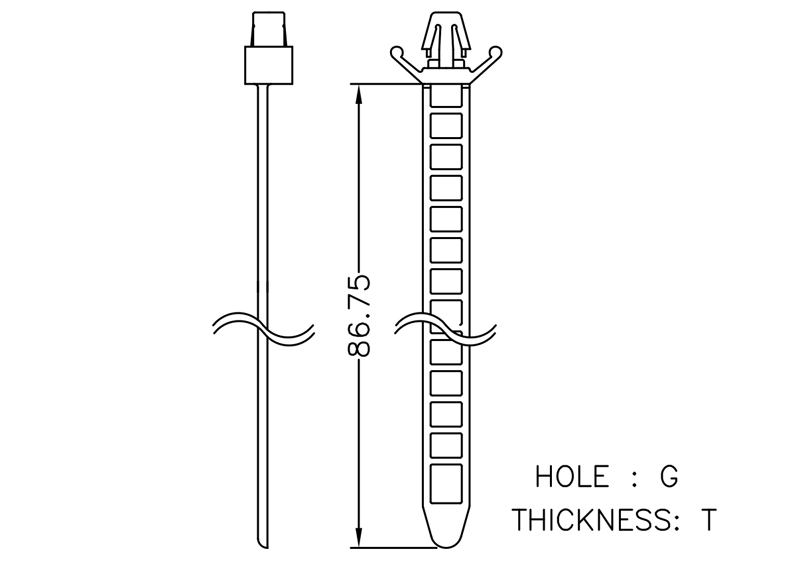

| Part no. | Material | Color | A max. C | B min. PHD | C max. PHD | D min. PT | E max. PT | Package |
|---|---|---|---|---|---|---|---|---|
| SWPL-22 | Nylon 66 | Black | 13 | 3.5 | 3.5 | 0.8 | 2 | 100 |
| SWPL-27 | Nylon 66 | Black | 13 | 4.8 | 4.8 | 0.6 | 1.2 | 100 |
| SWPL-3 | Nylon 66 | Black | 9 | 4.8 | 4.8 | 0.8 | 2 | 100 |
| SWPL-37-1 | Nylon 66 | Black | 13 | 100 | ||||
| SWPL-4 | Nylon 66 | Black | 15 | 4.8 | 4.8 | 0.8 | 2 | 100 |
| SWPL-6 | Nylon 66 | Black | 13 | 3.5 | 3.5 | 0.8 | 2 | 100 |
| SWPL-8 | Nylon 66 | Black | 22 | 4.8 | 4.8 | 0.8 | 2 | 100 |
| SWPL-1 | Nylon 66 | Black | 13 | 4.8 | 4.8 | 0.8 | 2 | 100 |
| SWPL-11 | Nylon 66 | Black | 13 | 4 | 4 | 0.6 | 1.2 | 100 |
| SWPL-2 | Nylon 66 | Black | 13 | 4.8 | 4.8 | 2 | 3 | 100 |
