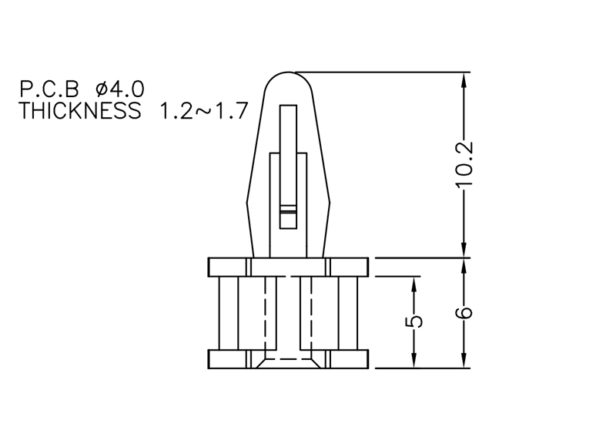

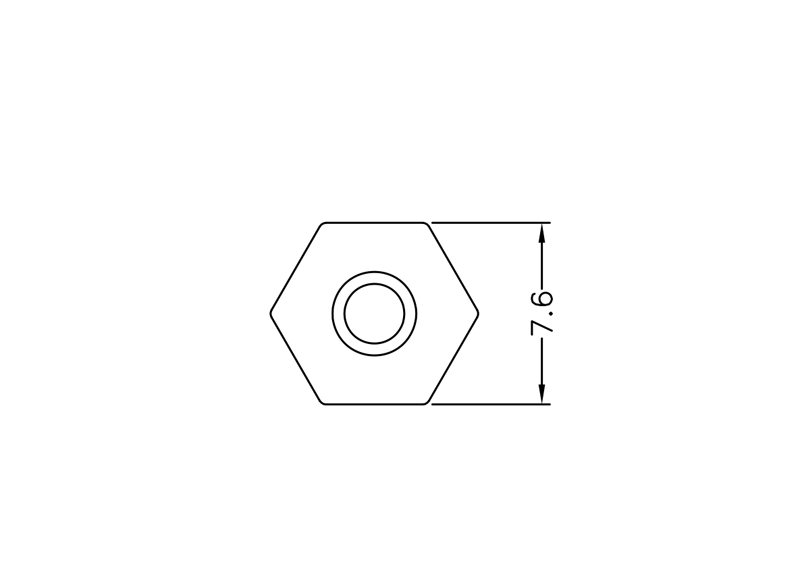

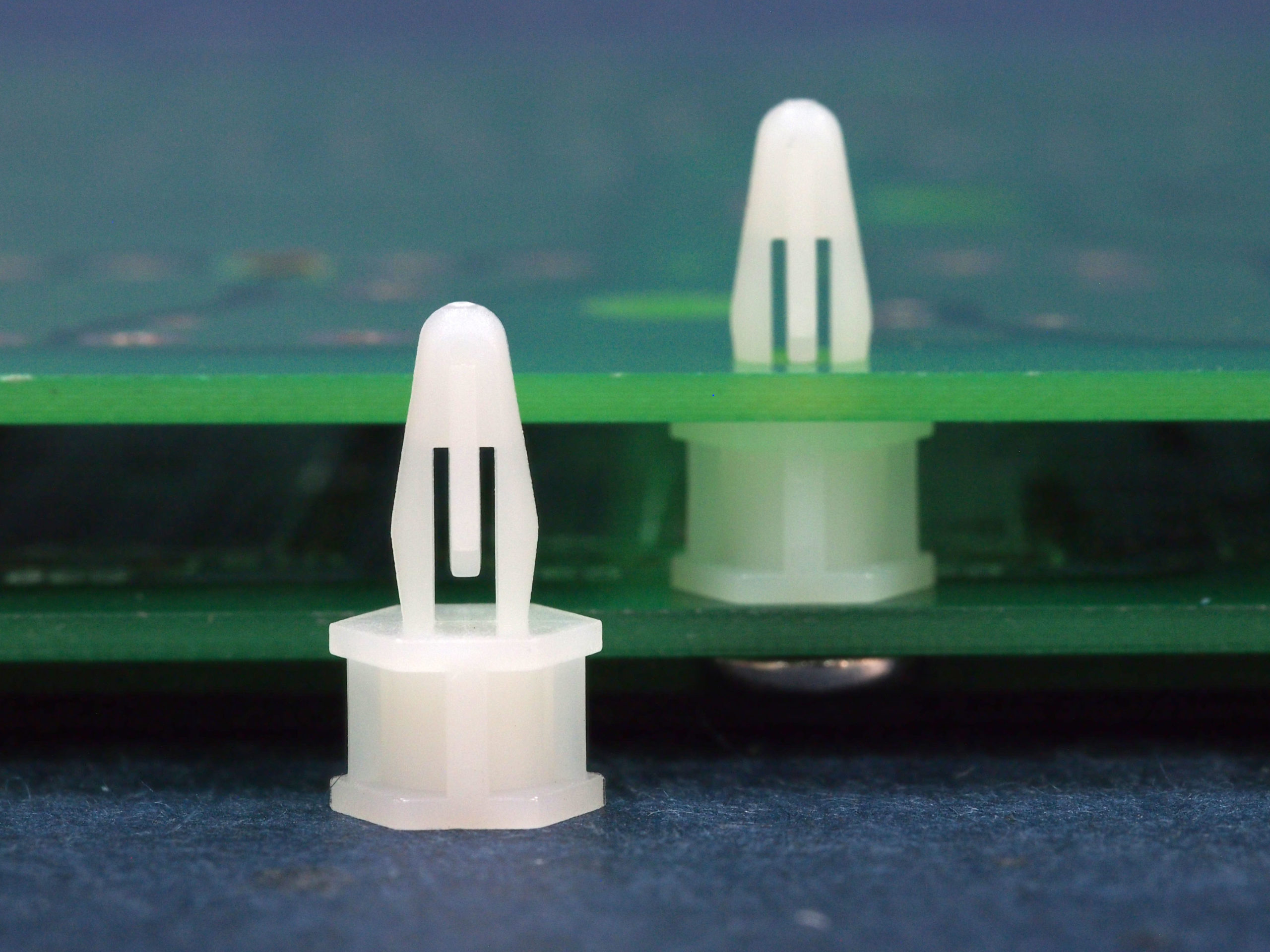

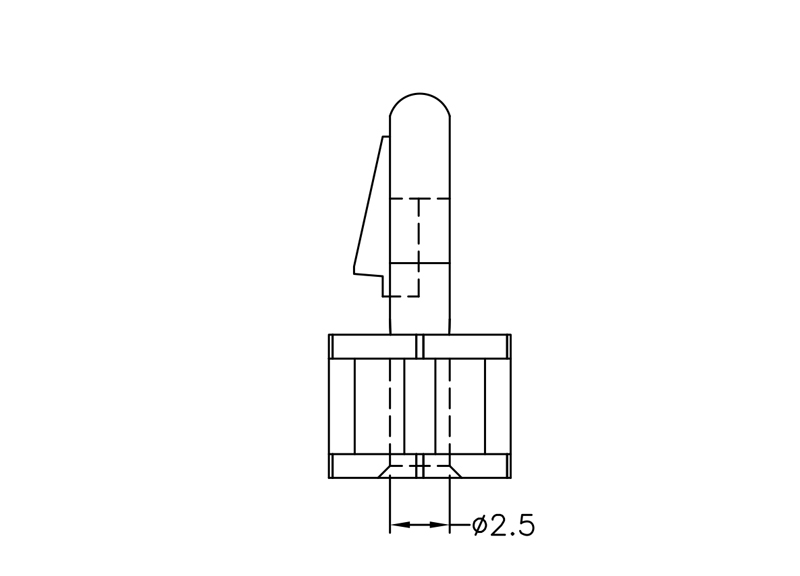

Snap lock hexagonal self tapping spacer with a pilot hole of 2.5 mm and a bayonet snap lock for a 4 mm mounting hole. Spacer length is 6 mm.
Part no.BSB-6
TypeSpacer
MaterialNylon 66
Flammability class94V-2 / 94V-0
ColorNatural/Black
Download 2D product drawing (PDF) Download 3D product drawing (CAD)Part no. | Material | Color | A Length |
Package |
---|---|---|---|---|
BSB-6 | Nylon 66 | Natural/Black | 6.0 | 1000 |
