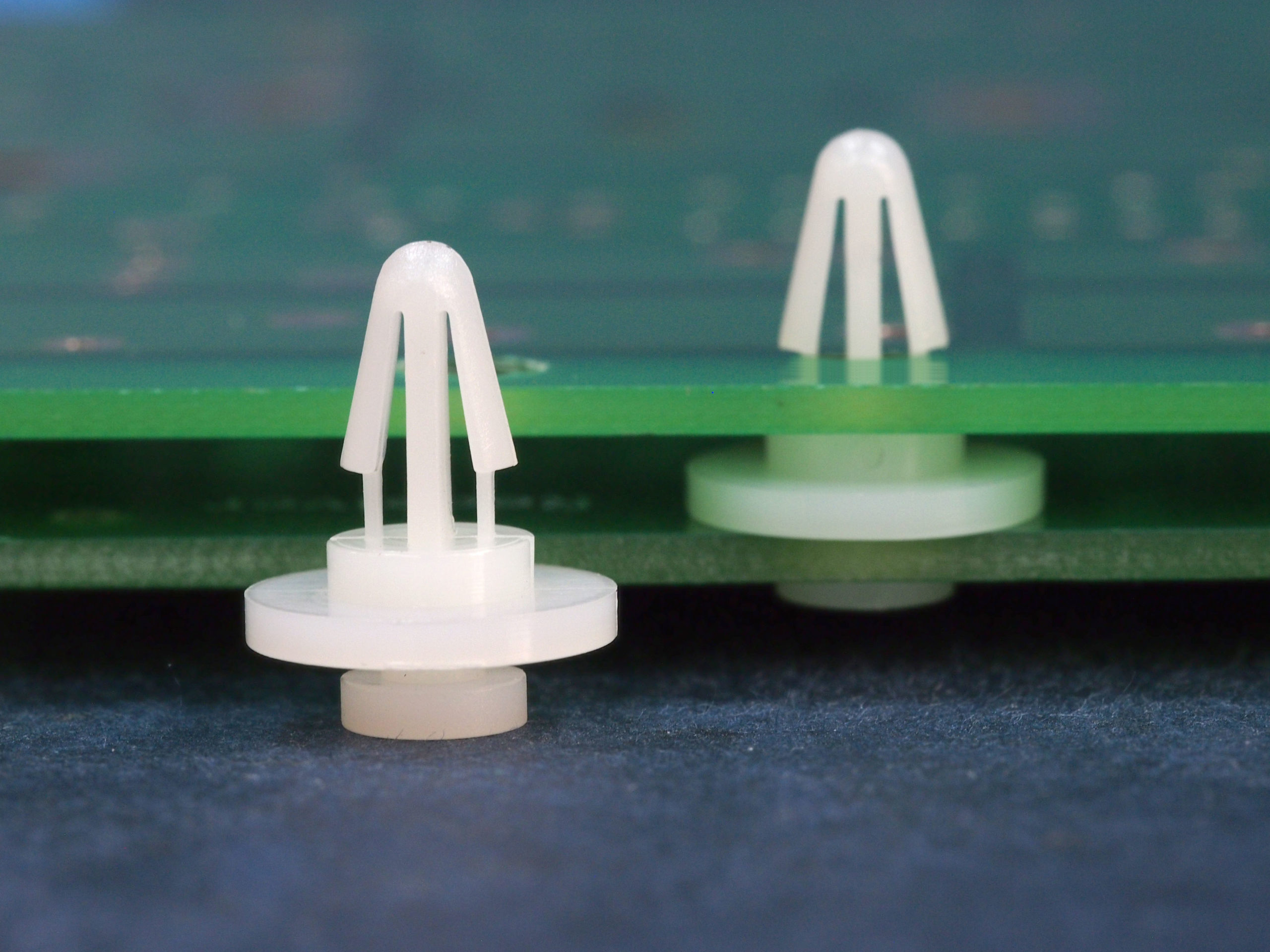

Snap Lock Keyhole

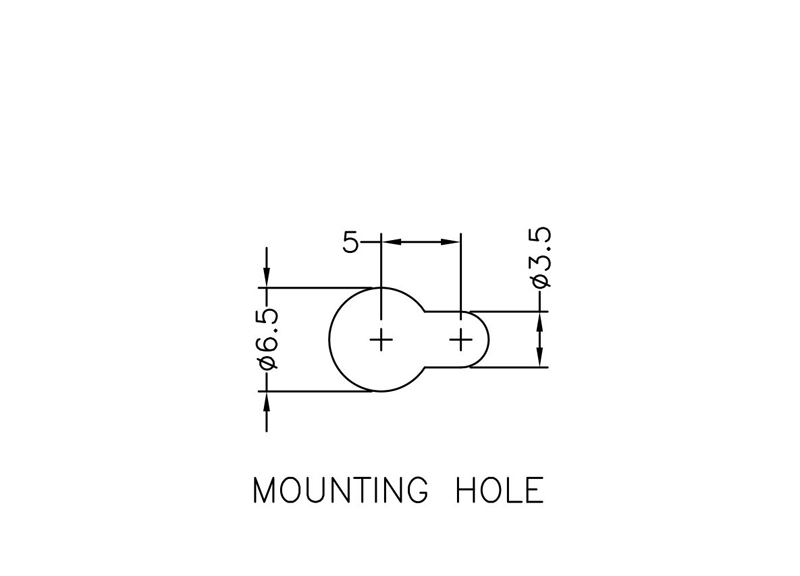

Snap lock for a 4 mm panel hole and a key slot locking at the chassis side. Spacer length is 2.5 mm.

Part no.

ACB-2.5

Type

Spacer

Material

Nylon 66

Flammability class

94V-2 / 94V-0

Color

Natural/Black

Download 2D product drawing (PDF)

Download

Download 3D product drawing (CAD)

Please contact us

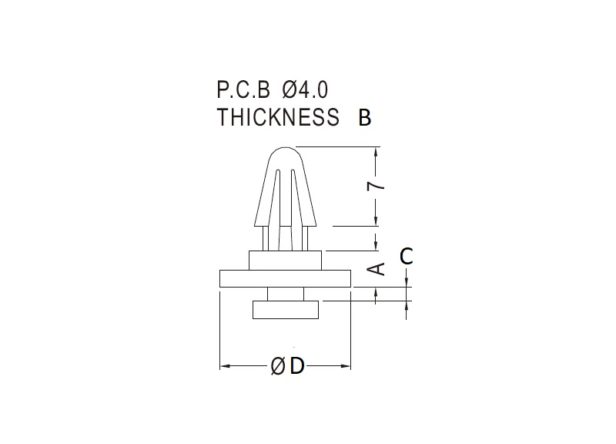

Part no. Material Color A
Length		 B
Panel THK		 C
Chassis THK		 D
Shoulder dia.		 Package
ACB-2.3 Nylon 66 Natural/Black 2.3 2.6 1.0 6.0 1000
ACB-2.5 Nylon 66 Natural/Black 2.5 1.6~2.0 1.4 11.5 1000
ACB-3 Nylon 66 Natural/Black 3.2 1.6~2.0 1.2 11.6 1000
