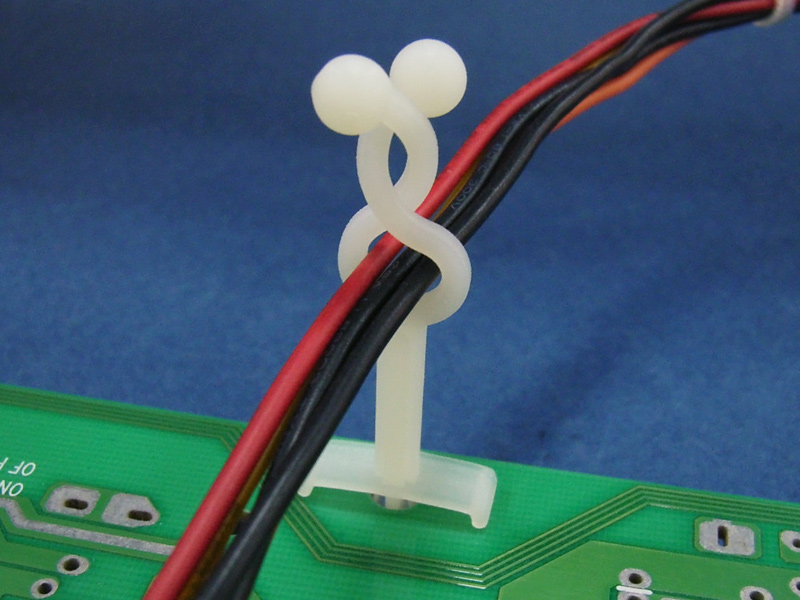

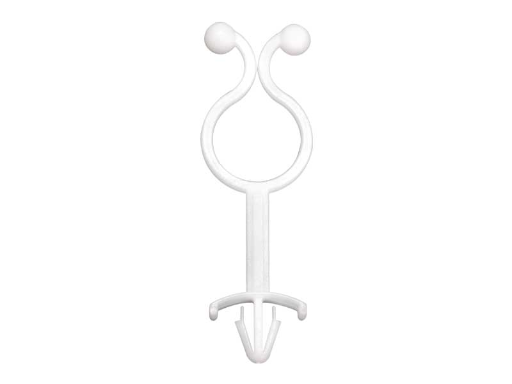

Push Mount 4.4mm Stand-off Twist Lock. Max. Bundle dia. Ø9.8mm. Mounting hole dia. Ø4.8-5.0mm. Panel Thickness 0.8-2.5mm. Material Nylon 66. Available in Natural or Black. Reusable and releasable for easy wire bundling
THA-19
Twist Lock
Nylon 66
94V-2, 94V-0
Black, Natural
| Part no. | Material | Color | A max. C | B min. PHD | C max. PHD | D min. PT | E max. PT | Package |
|---|---|---|---|---|---|---|---|---|
| THA-2 | Nylon 66 | Black | 7.1 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-3 | Nylon 66 | Black | 7.1 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-4 | Nylon 66 | Black | 10.8 | 4.8 | 5 | 1 | 3.2 | 1000 |
| THA-5 | Nylon 66 | Black | 10.8 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-6 | Nylon 66 | Black | 10.8 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-7 | Nylon 66 | Black | 15 | 4.8 | 5 | 1 | 3.2 | 1000 |
| THA-8 | Nylon 66 | Black | 15 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-9 | Nylon 66 | Black | 15 | 4.8 | 5 | 1 | 3.2 | 500 |
| THA-1 | Nylon 66 | Black | 7.1 | 4.8 | 5 | 1 | 3.2 | 1000 |
| THA-10 | Nylon 66 | Black | 20 | 4.8 | 5 | 1 | 3.2 | 500 |
