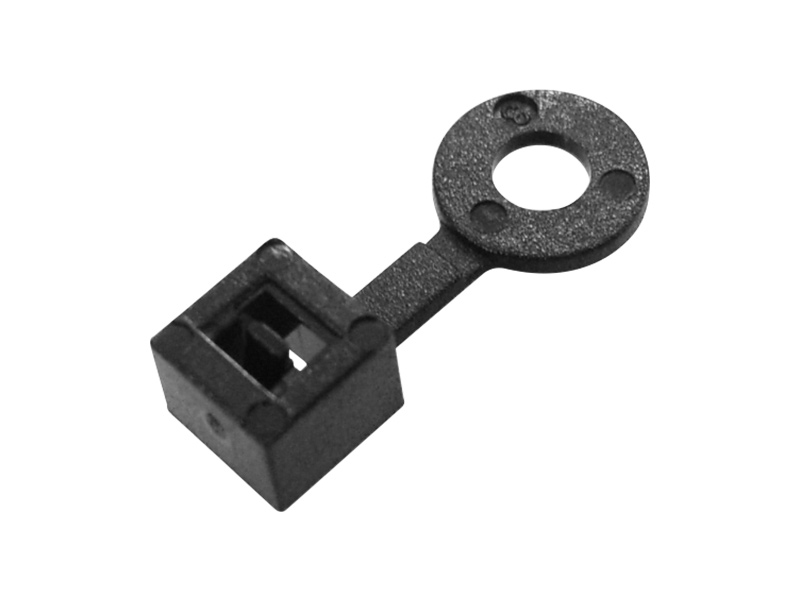

ASUS-1

Screw Mount Cable tie Holder. For 2.5mm Cable Tie width. Screw Hole dia. Ø2.8mm. Nylon 66.Color Natural and Black

ASUS-3

Screw Mount Cable tie Holder. For 2.5mm Cable Tie width. Screw Hole dia. Ø3.1mm. Nylon 66.Color Natural and Black

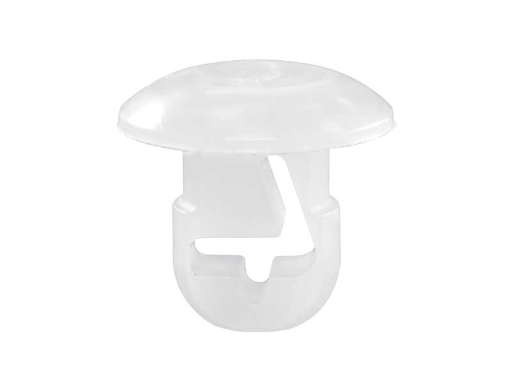

CCM-1

Rear Mount Cable tie holder for Cable Tie maximum width 4.9mm. Mounting Hole dia. Ø6.4mm. Nylon 66. Available in Natural and Black

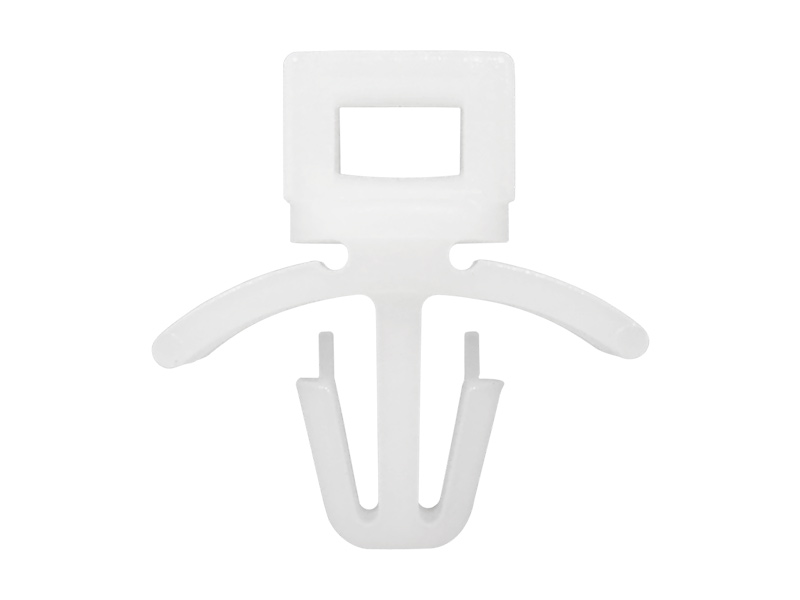

CCME-1

Snap Lock Cable tie holder for Cable Tie maximum width 3.8mm. Mounting Hole dia. Ø4.0mm. Panel Thickness 0.8-2.0mm. Nylon 66. Available in Natural and Black. Patented Design

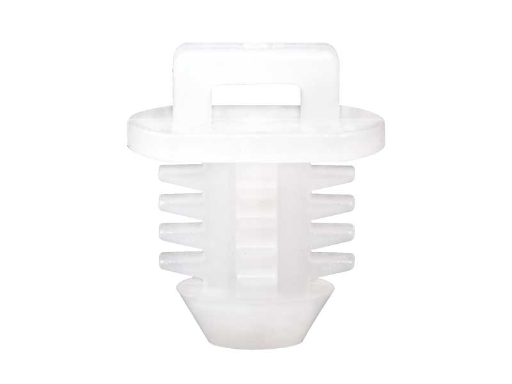

CCMF-1

Blind Hole Cable Tie Mount for maximum Cable Tie width 3.8mm. Mounting Hole dia.Ø4.5-5.0mm. Nylon 66. Available in Natural and Black

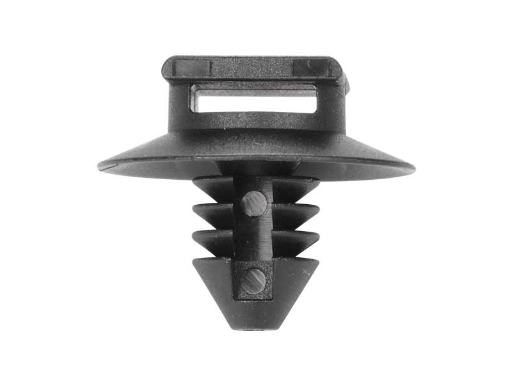

CCMF-2

Blind Hole Cupped Cable Tie Mount for maximum Cable Tie width 7mm. Mounting Hole dia.Ø6.0mm. Nylon 66. Available in Natural and Black

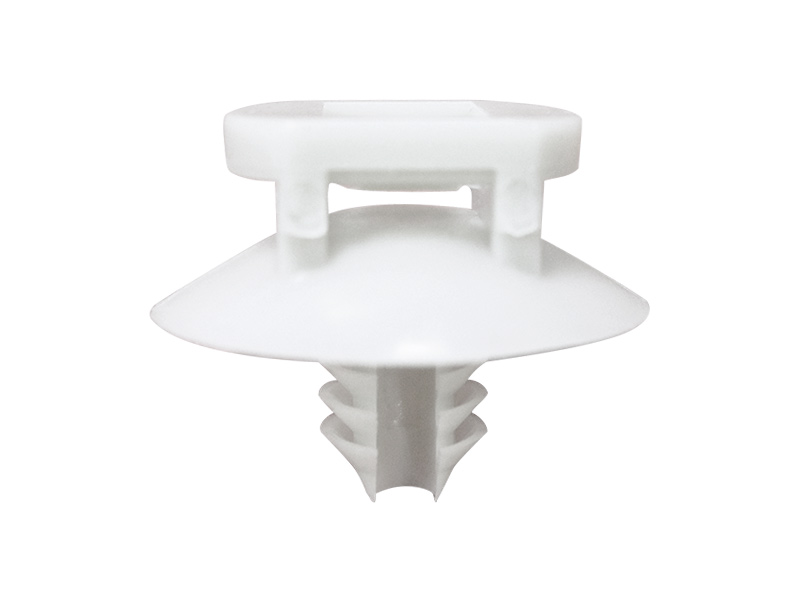

CCMF-3

Blind Hole Cupped Cable Tie Mount for maximum Cable Tie width 5mm. Mounting Hole dia.Ø4.5-5.0mm. Nylon 66. Available in Natural and Black

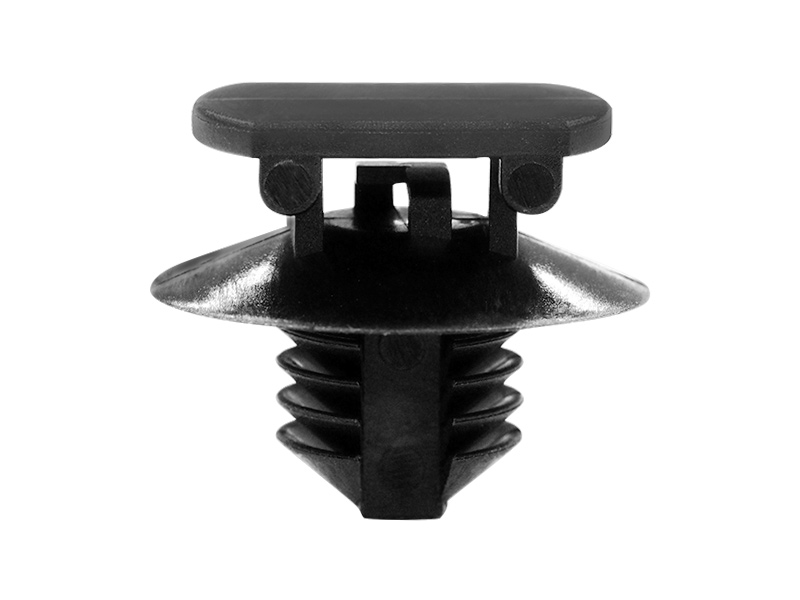

CCMF-5

Blind Hole Cupped Cable Tie Mount for maximum Cable Tie width 5mm. Mounting Hole dia.Ø6.5-7.0mm. Nylon 66. Available in Natural and Black

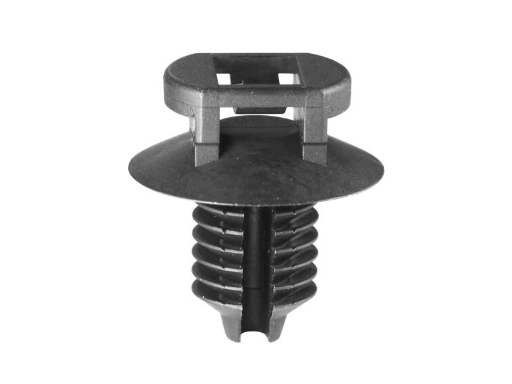

CCMF-7

Blind Hole Cupped Cable Tie Mount for maximum Cable Tie width 5mm. Mounting Hole dia.Ø6.4-7.1mm. Nylon 66. Available in Natural and Black

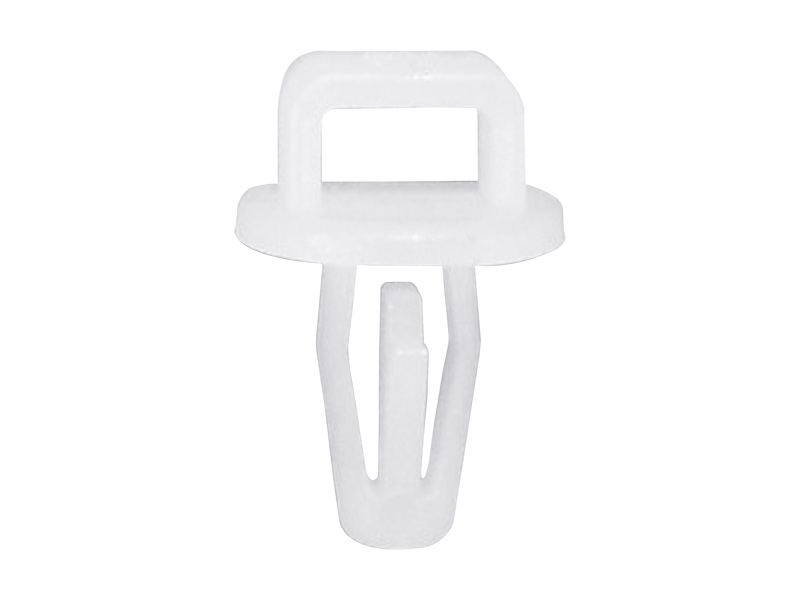

CCMT-2

Snap Lock Cable tie holder for Cable Tie maximum width 4.5mm. Mounting Hole dia. Ø4.0mm. Panel Thickness 1.6-2.0mm. Nylon 66. Available in Natural and Black

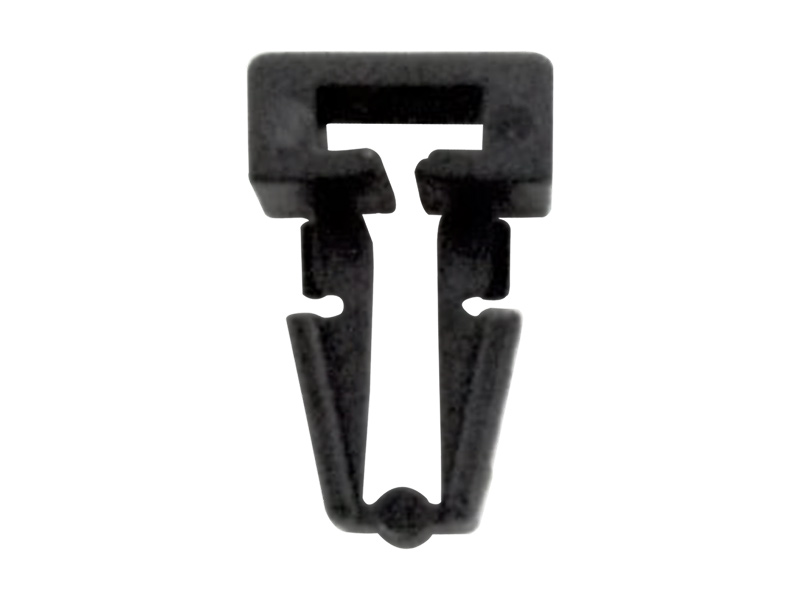

CCMV-1

Snap Lock Cable tie holder for Cable Tie maximum width 5.4mm. Mounting Hole dia. Ø6.4mm. Panel Thickness 3.17mm. Nylon 66. Available in Natural and Black

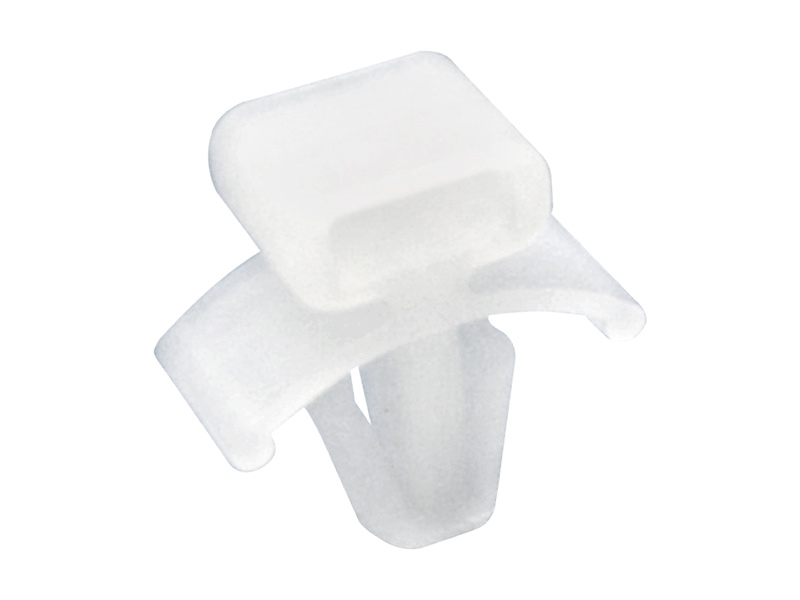

CCMW-1

Snap Lock Cable tie holder for Cable Tie maximum width 6.4mm. Mounting Hole dia. Ø6.4mm. Panel Thickness 1.2-2.8mm. Nylon 66. Available in Natural and Black

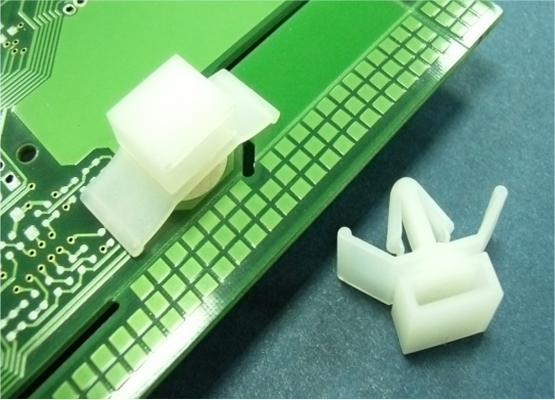

CCMW-2

Snap Lock Cable tie holder for Cable Tie maximum width 8.2mm. Mounting Hole dia. Ø6.2mm. Panel Thickness 0.8-3.2mm. Nylon 66. Available in Natural and Black

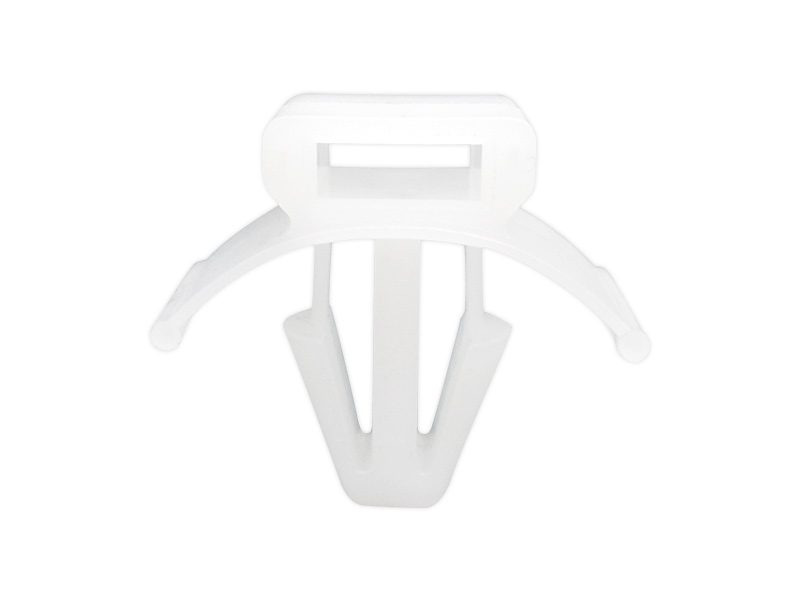

CCMW-3

Snap Lock Cable tie holder for Cable Tie maximum width 5.8mm. Mounting Hole dia. Ø6.2-6.3mm. Panel Thickness 0.8-3.6mm. Nylon 66. Available in Natural and Black

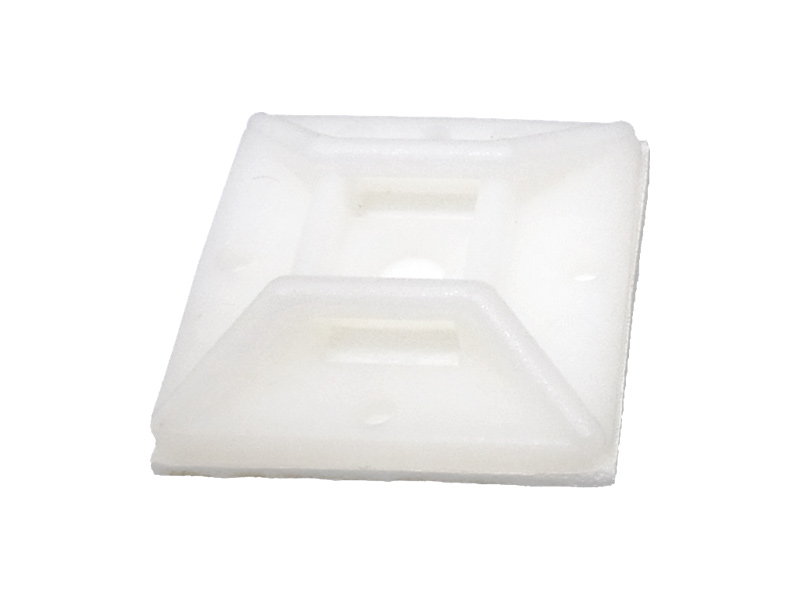

CM-1

Cable tie mount 25.3x25.3mm Self Adhesive/ Screw Mount. Height 6.2mm. For Max. Cable Tie width 7.8mm. Material Nylon 66. Available in Natural or Black.

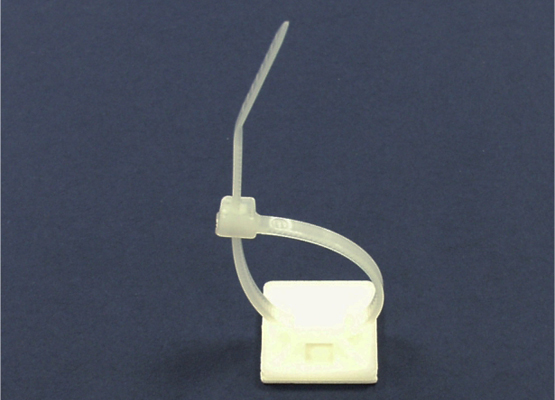

CM-13

Cable tie mount 13x13mm Self Adhesive. Height 3.2mm. For Max. Cable Tie width 3.2mm. Material Nylon 66. Available in Natural or Black. UL Certified

CM-16

Cable tie mount 13x13mm Self Adhesive. Height 4.0mm. For Max. Cable Tie width 3.8mm. Material Nylon 66. Available in Natural or Black.

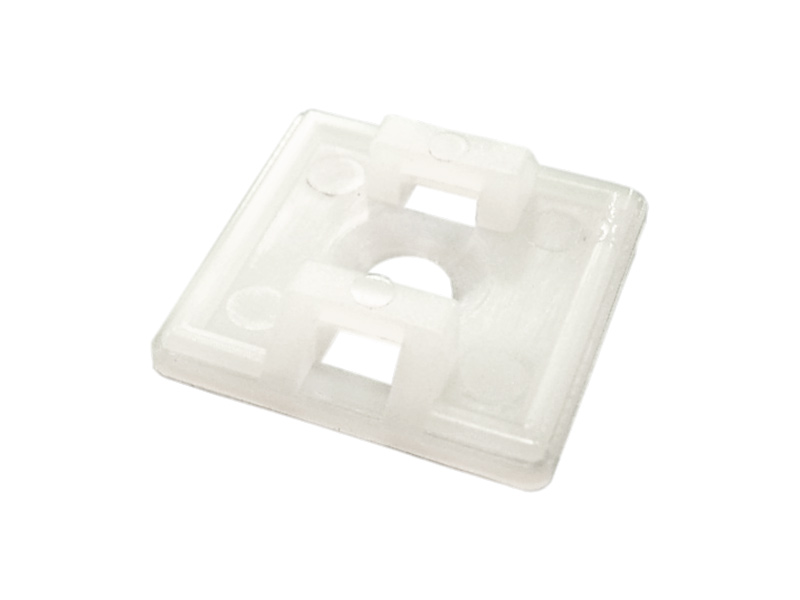

CM-18

Cable tie mount 18.8x18.8mm Self Adhesive/ Screw Mount. Height 4.95mm. For Max. Cable Tie width 4.0mm. Material Nylon 66. Available in Natural or Black.

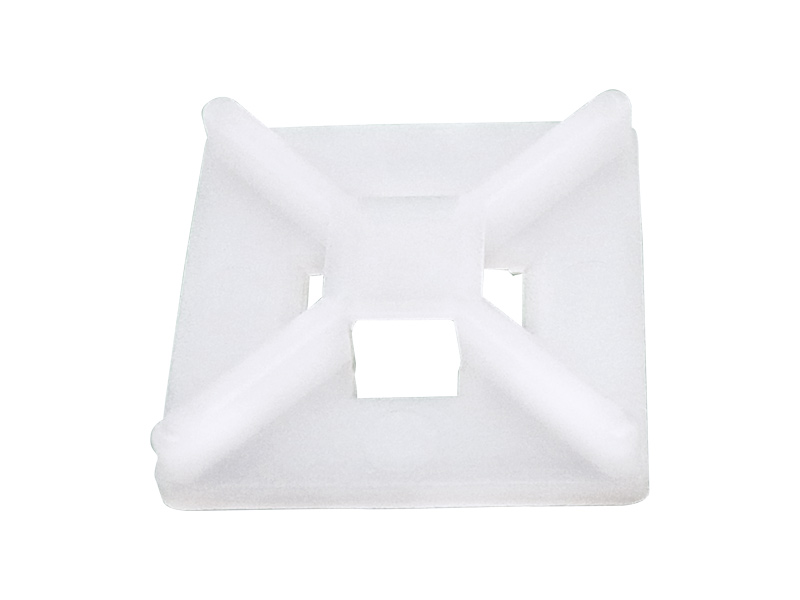

CM-19

Cable tie mount 13x13mm Self Adhesive. Height 4.0mm. For Max. Cable Tie width 4.0mm. Material Nylon 66. Available in Natural or Black. UL Certified

CM-19L

Cable tie mount 13x13mm Self Adhesive. Height 4.8mm. For Max. Cable Tie width 5.0mm. Material Nylon 66. Available in Natural or Black.

CM-19S

Cable tie mount 13x13mm Self Adhesive / Screw Mount 3.0mm. Height 5.0mm. For Max. Cable Tie width 4.0mm. Material Nylon 66. Available in Natural or Black.

CM-19SL

Cable tie mount Self Adhesive / Screw Mount 4.2mm. Height 5.0mm. For Max. Cable Tie width 4.0mm. Material Nylon 66. Available in Natural or Black. UL Certified

CM-20

Cable tie mount 13x13mm Self Adhesive. Height 4.3mm. For Max. Cable Tie width 4.8mm. Material Nylon 66. Available in Natural or Black. UL Certified

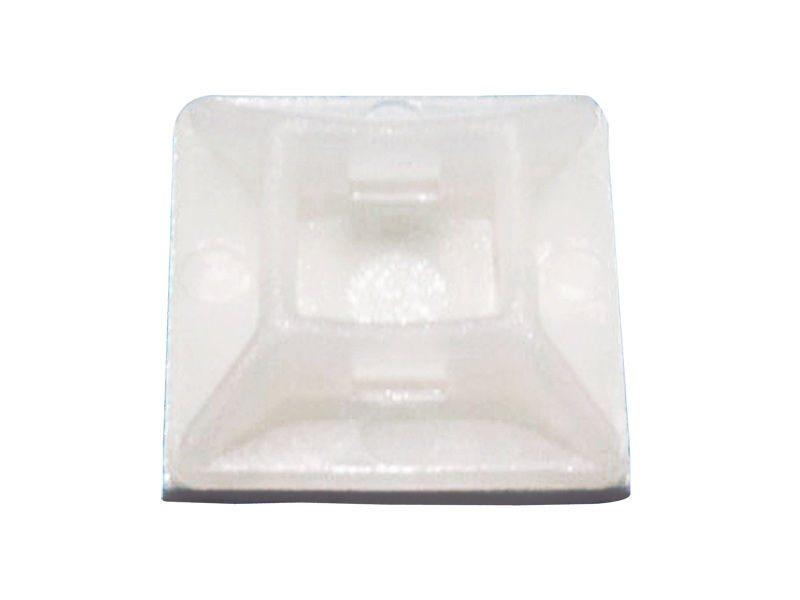

CM-25

Cable tie mount 25.4x25.4mm Self Adhesive / Screw Mount 5.3mm. Height 7.1mm. For Max. Cable Tie width 5.1mm. Material Nylon 66. Available in Natural or Black.

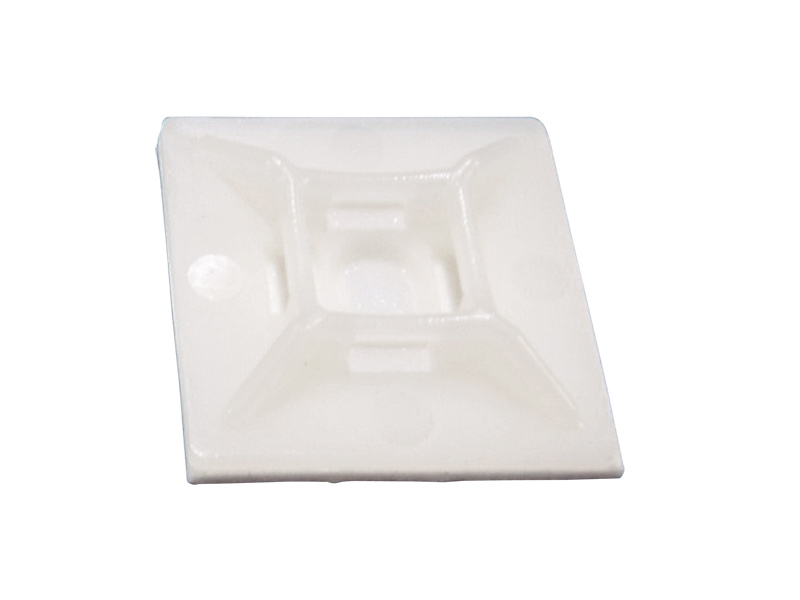

CM-28

Cable tie mount 27.8x27.8mm Self Adhesive / Screw Mount 5.0mm. Height 5.5mm. For Max. Cable Tie width 6.0mm. Material Nylon 66. Available in Natural or Black.

CM-28S

Cable tie mount 28.0x28.0mm Self Adhesive/ Screw Mount. Height 5.2mm. For Max. Cable Tie width 5.6mm. Material Nylon 66. Available in Natural or Black.

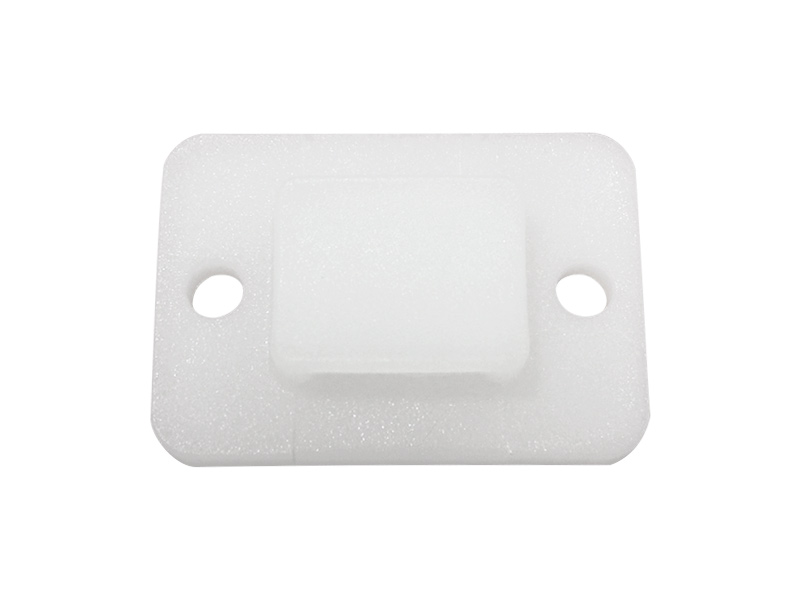

CM-29

Cable tie mount 20x14mm Self Adhesive / Dual Screw Mount 2.2mm. Height 4.6mm. For Max. Cable Tie width 4.5mm. Material Nylon 66. Available in Natural or Black.

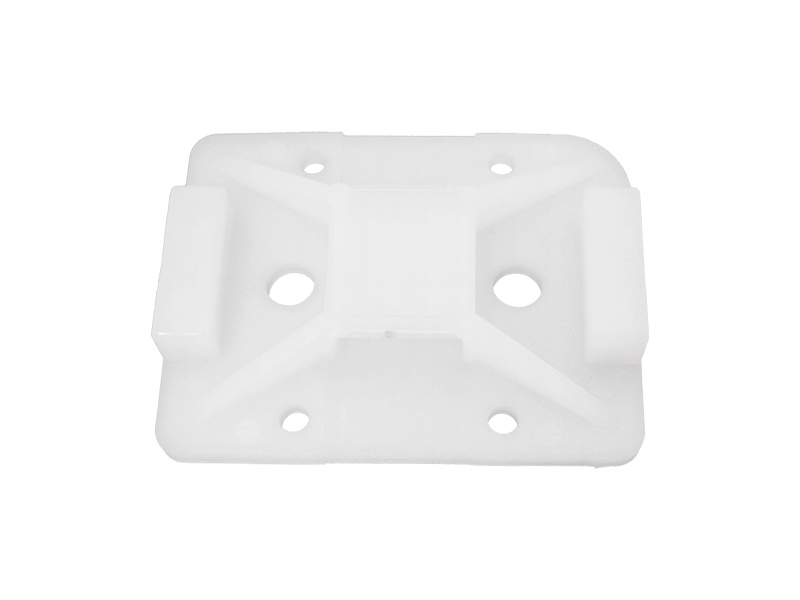

CM-30

Cable tie mount 32.4x25.1mm Self Adhesive / Dual Screw Mount 3.3mm. Height 5.8mm. For Max. Cable Tie width 8.3mm. Material Nylon 66. Available in Natural or Black.

CM-38

Cable tie mount 18.8x18.8mm Self Adhesive/ Screw Mount. Height 5.3mm. For Max. Cable Tie width 9.3mm. Material Nylon 66. Available in Natural or Black.

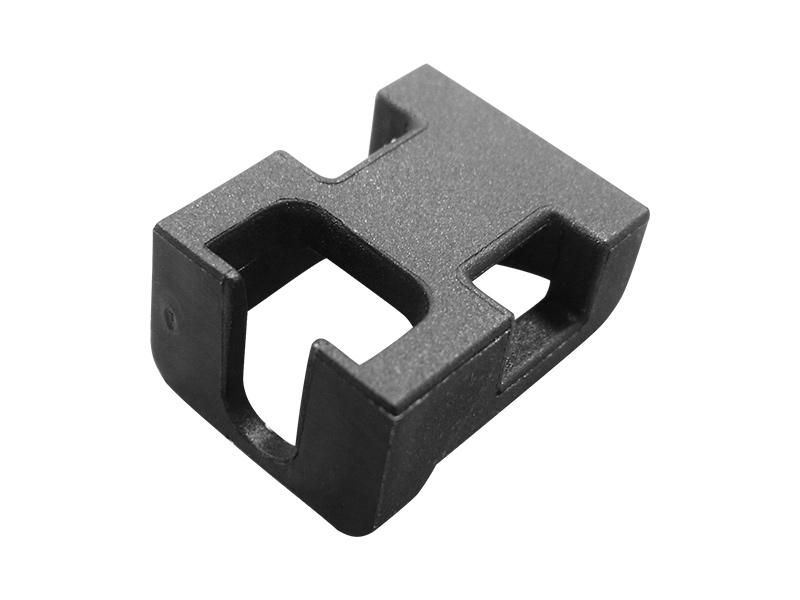

SWCM-1

M3 Screw Mount Connector Retention for use with a Cable Tie. Maximum Cable Tie Width is 6.5mm. Nylon 66. Color Natural or Black. Prevents accidental disconnection of a cord/p>

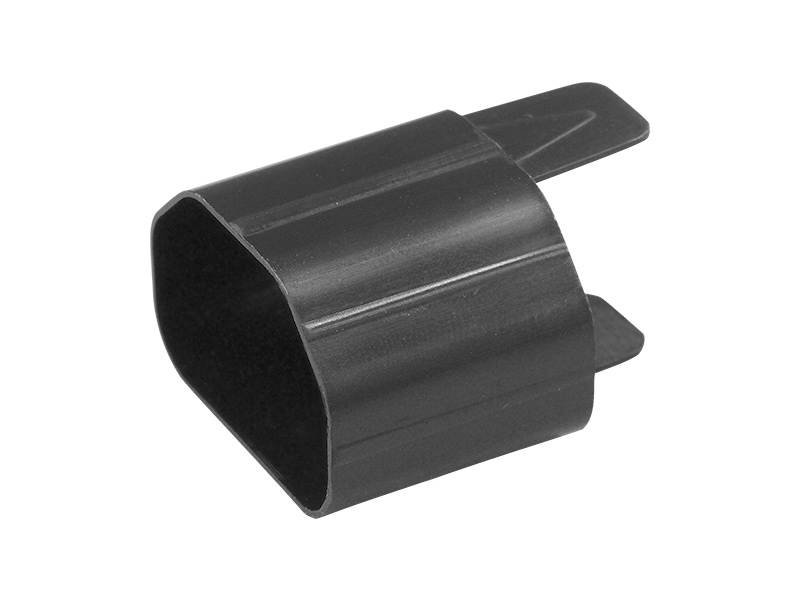

SWKL-1

Power Plug Mount. Available in Natural,Black,Red,Blue, Yellow, Green. Prevents accidental disconnection of the connector

SWKL-2

Power Plug Mount. Available in Natural,Black,Red,Blue, Yellow, Green. Prevents accidental disconnection of the connector

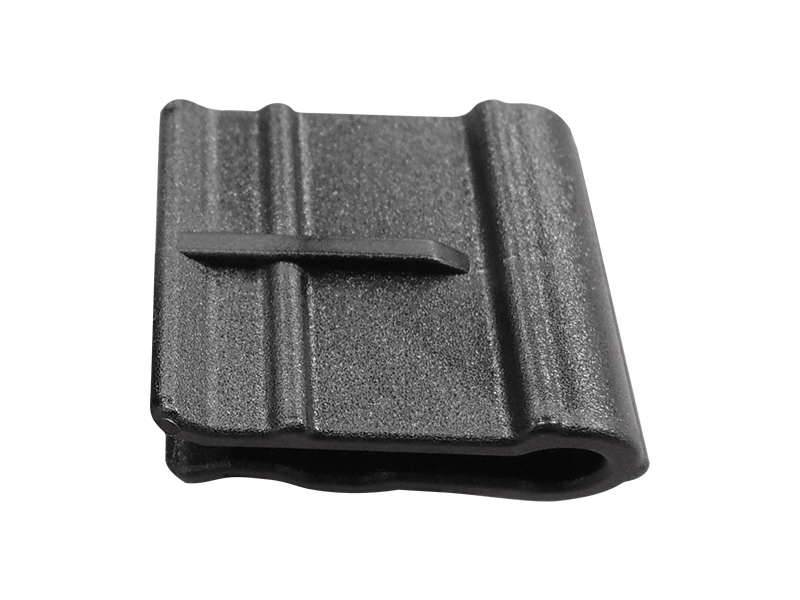

SWPC-1

Edge Mount Nylon 66 clip offers strong panel retention forces, while requiring minimal insertion force. Panel Thickness 1.5-2.0mm. The clip is designed to hold a Cable Tie. Available in Natural/Black/Gray. Typical usage in PV (Solar Panel) installations

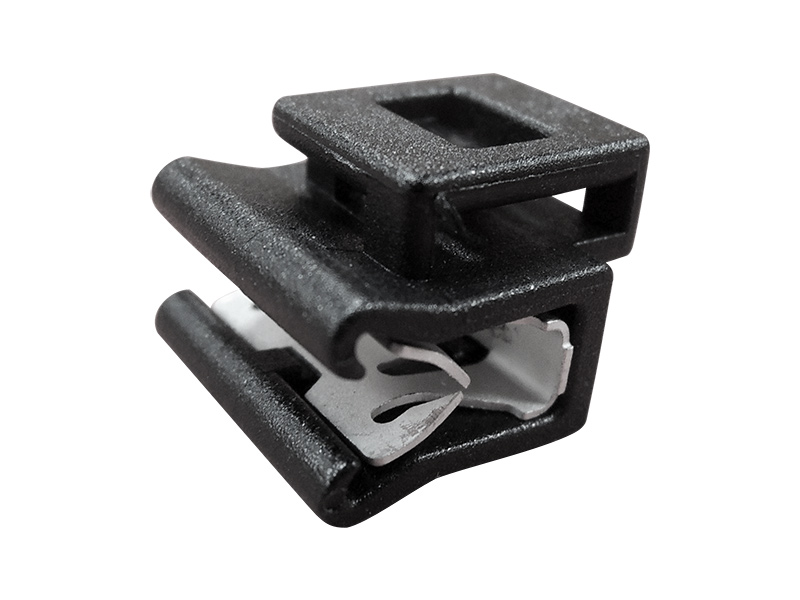

SWPC-2

Edge Mount Stainless Steel clip offers strong panel retention forces, while requiring minimal insertion force. Panel Thickness 1.5-2.0mm. The clip is designed to hold a Cable Tie. Housing available in Natural/Black/Gray. Typical usage in PV (Solar Panel) installations

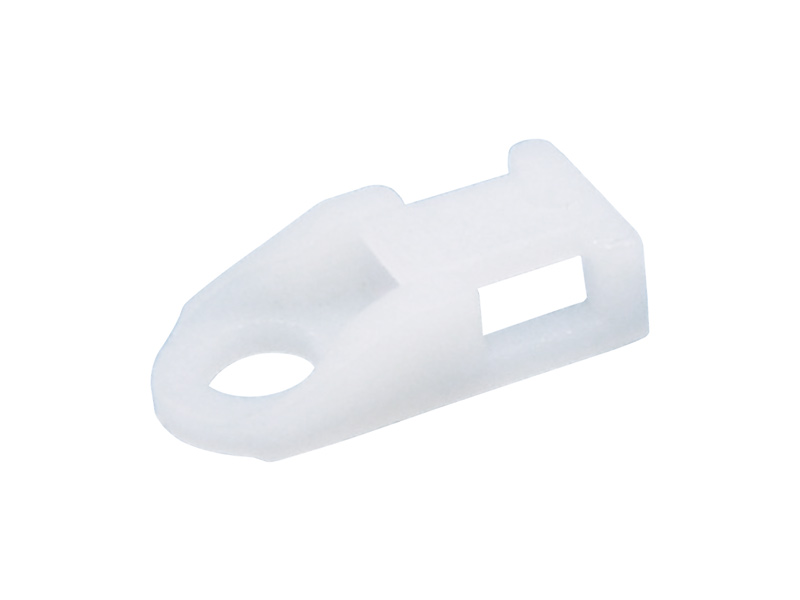

TH-1

Cable Tie Base 19.5x9.6mm Screw or Rivet Mount. Height 4.9mm. For Max. Cable Tie width 5.0mm. Screw hole dia. Ø4.4mm. Material Nylon 66. Available in Natural or Black

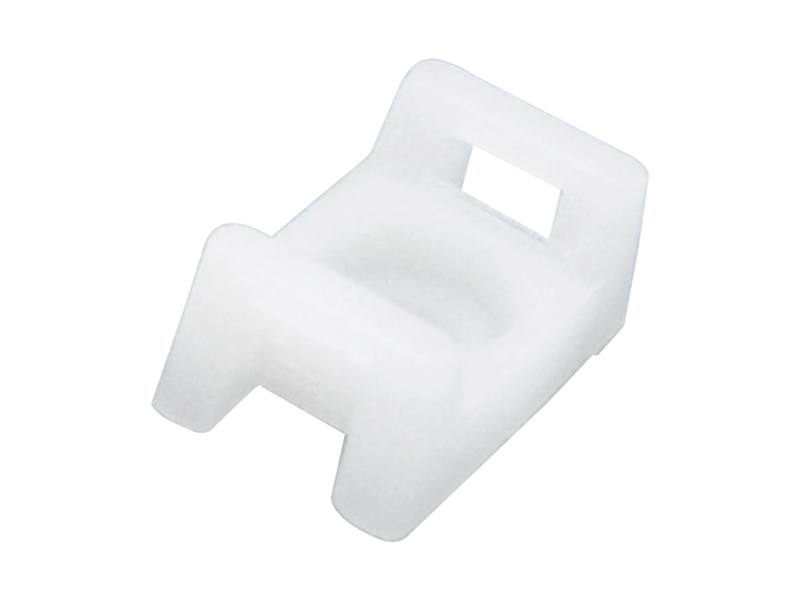

TH-2

Cable Tie Base 19.5x9.5mm Screw or Rivet Mount. Height 4.8mm. For Max. Cable Tie width 5.5mm. Screw hole dia. Ø3.6mm. Material Nylon 66. Available in Natural or Black

TH-2S

Cable Tie Base 19.5x9.5mm Screw or Rivet Mount. Height 4.8mm. For Max. Cable Tie width 5.5mm. Screw hole dia. Ø4.7mm. Material Nylon 66. Available in Natural or Black

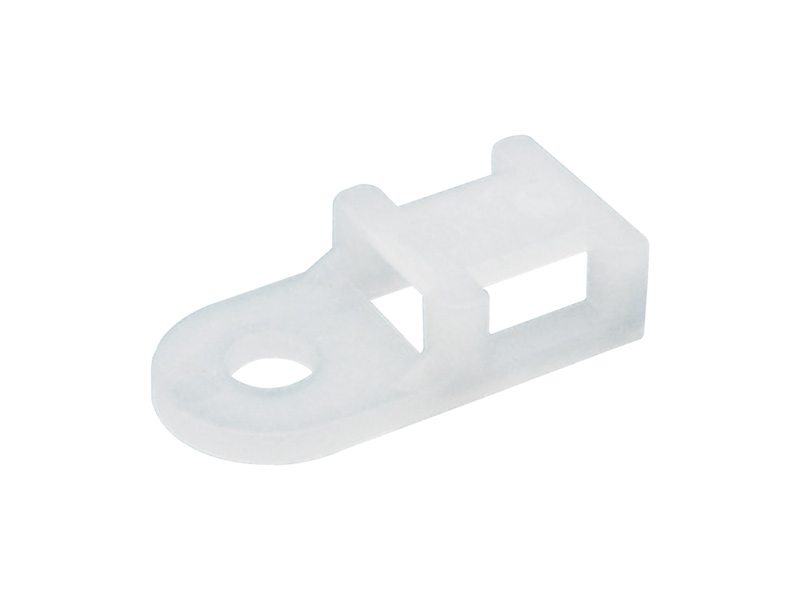

TH-3

Low Profile Cable Tie Mount 19.0x9.52mm Screw or Rivet Mount. Height 4.95mm. For Max. Cable Tie width 4.95mm. Screw hole dia. Ø4.3mm. Material Nylon 66. Available in Natural or Black

TH-3L

Low Profile Cable Tie Mount 19.0x9.52mm Screw or Rivet Mount. Height 4.95mm. For Max. Cable Tie width 4.95mm. Screw hole dia. Ø4.3mm. Material Nylon 66. Available in Natural or Black

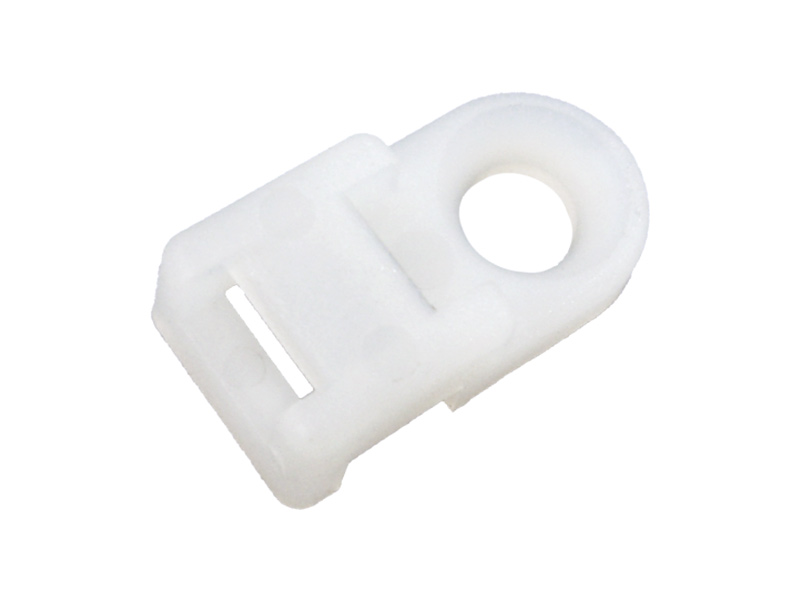

TH-4

Low Profile Cable Tie Mount 19.0x9.52mm Screw Mount. Height 4.95mm. For Max. Cable Tie width 4.95mm. Screw hole dia. Ø4.3mm. Material Nylon 66. Available in Natural or Black

TH-5

Low Profile Cable Tie Mount 19.2x9.8mm Screw Mount. Height 6.0mm. For Max. Cable Tie width 5.2mm. Screw hole dia. Ø4.3mm. Material Nylon 66. Available in Natural or Black

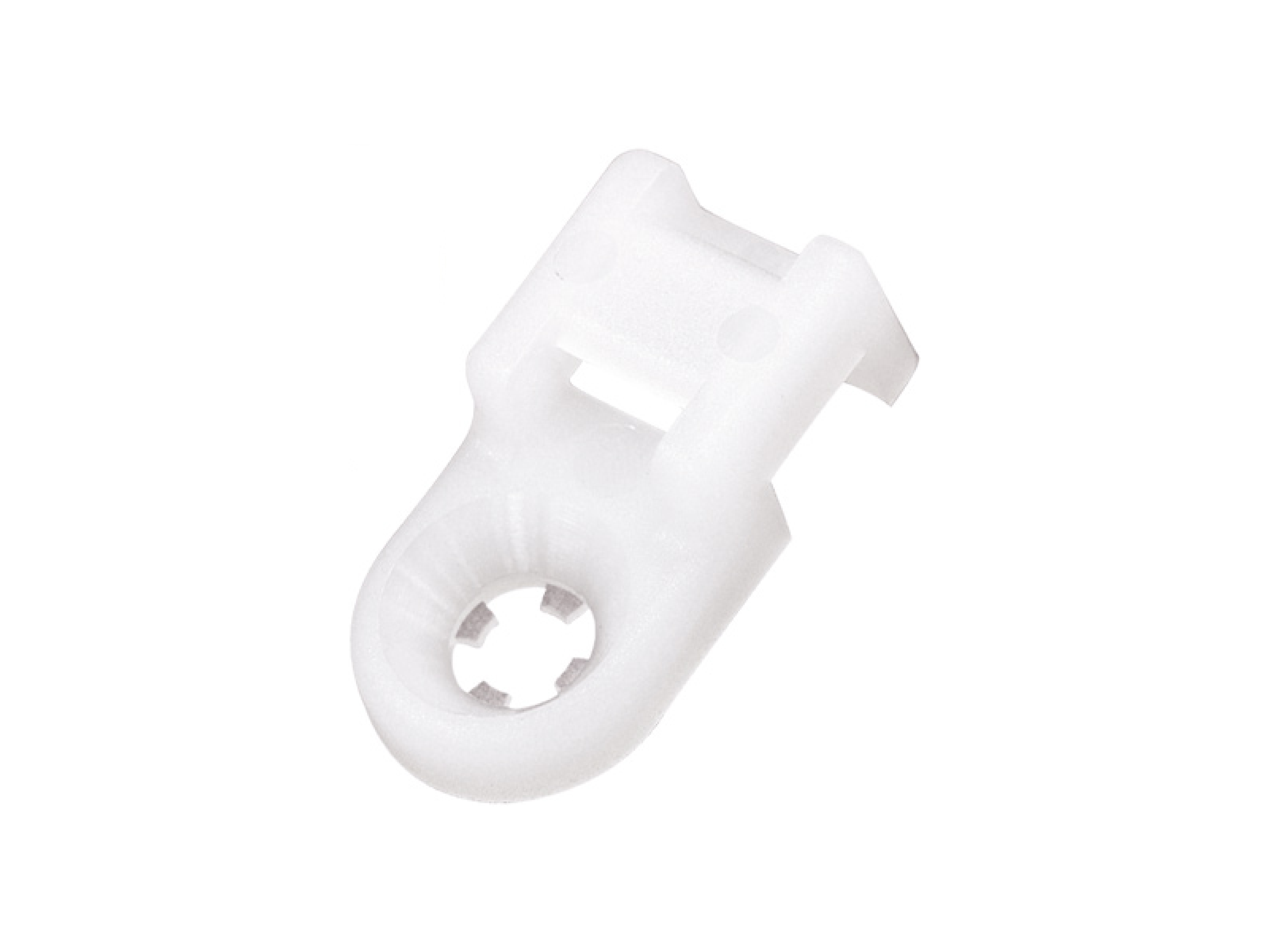

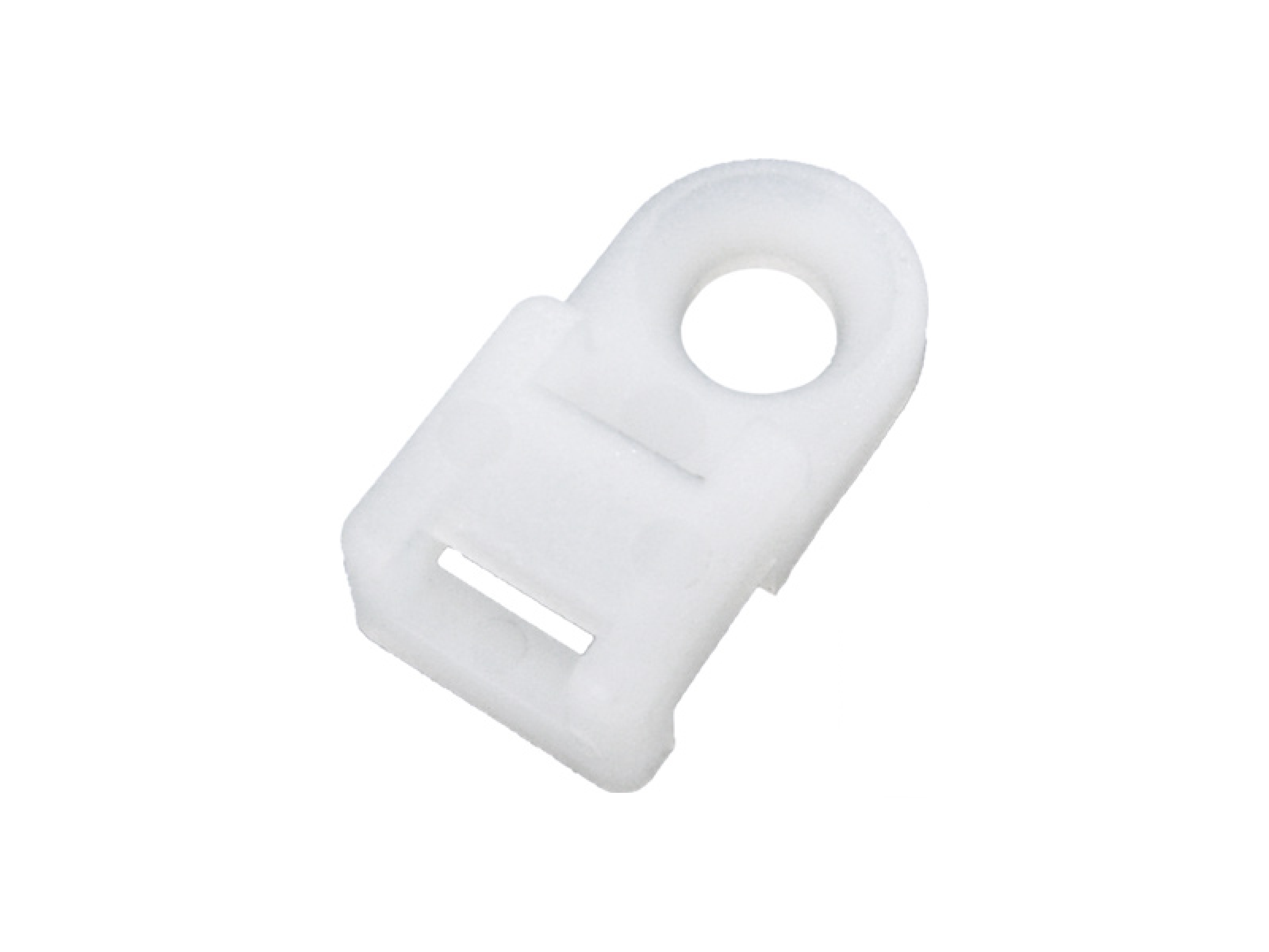

TH-5-1

Low Profile Cable Tie Mount 19.2x9.8mm Screw Mount. Height 6.0mm. For Max. Cable Tie width 5.2mm. Screw hole dia. Ø2.8mm with retention teeth. Material Nylon 66. Available in Natural or Black.

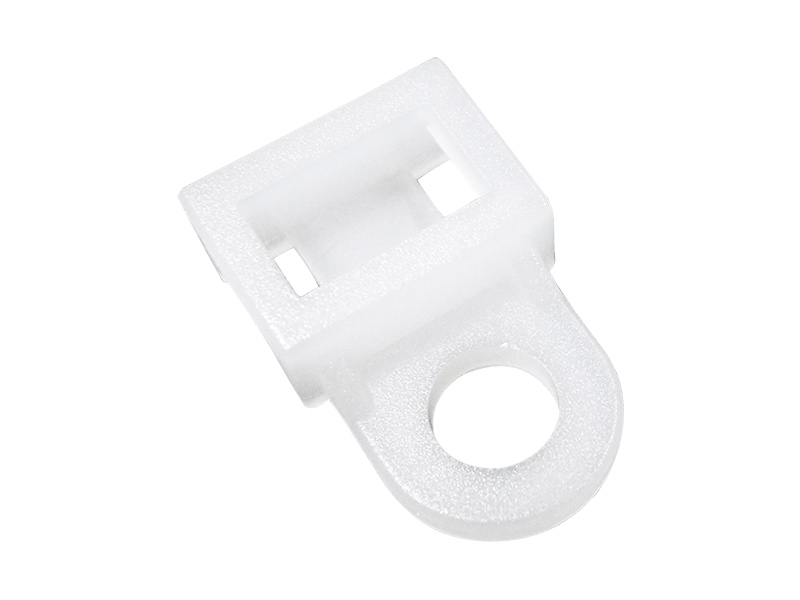

TH-6

Low Profile Cable Tie Mount 13.7x8.5mm Screw Mount. Height 3.8mm. For Max. Cable Tie width 3.52mm. Screw hole dia. Ø3.5mm. Material Nylon 66. Available in Natural or Black

TH-7

Low Profile Cable Tie Mount 19.0x9.52mm Screw Mount. Height 4.95mm. For Max. Cable Tie width 4.95mm. Screw hole dia. Ø6.5mm. Material Nylon 66. Available in Natural or Black

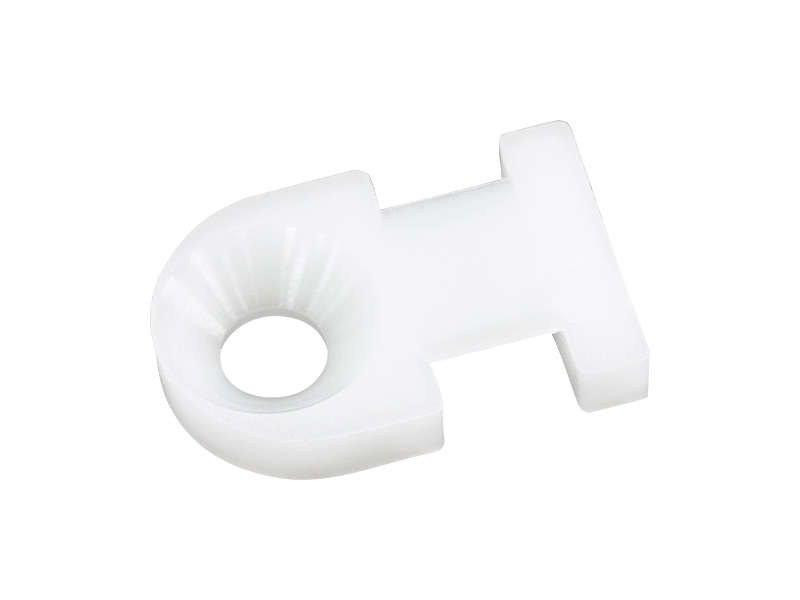

TH-8

Low Profile Cable Tie Mount 19.3x12.6mm Screw Mount. Height 3.3mm. For Max. Cable Tie width 5.5mm. Screw hole dia. Ø4.4mm. Material Nylon 66. Available in Natural or Black

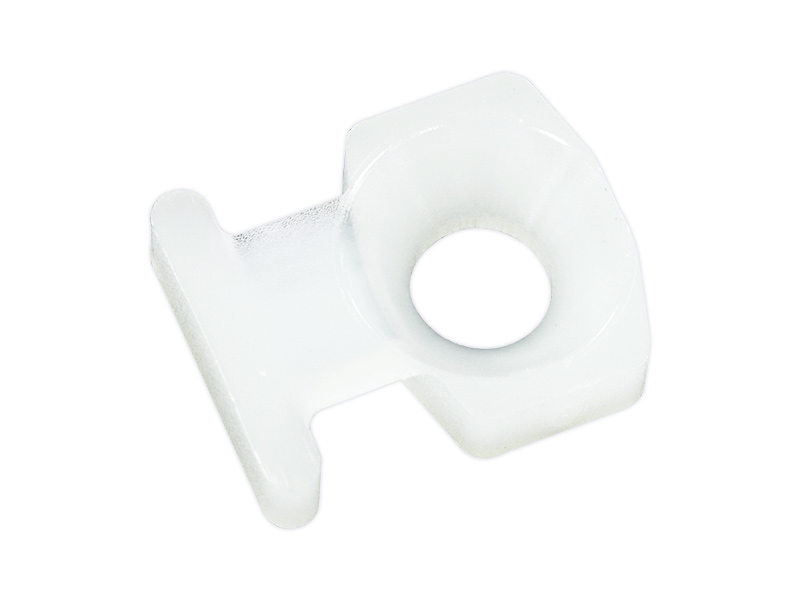

TH-9

Low Profile Cable Tie Mount 10.2x8.1mm Screw Mount. Height 2.5mm. For Max. Cable Tie width 2.8mm. Screw hole dia. Ø3.3mm. Material Nylon 66. Available in Natural or Black

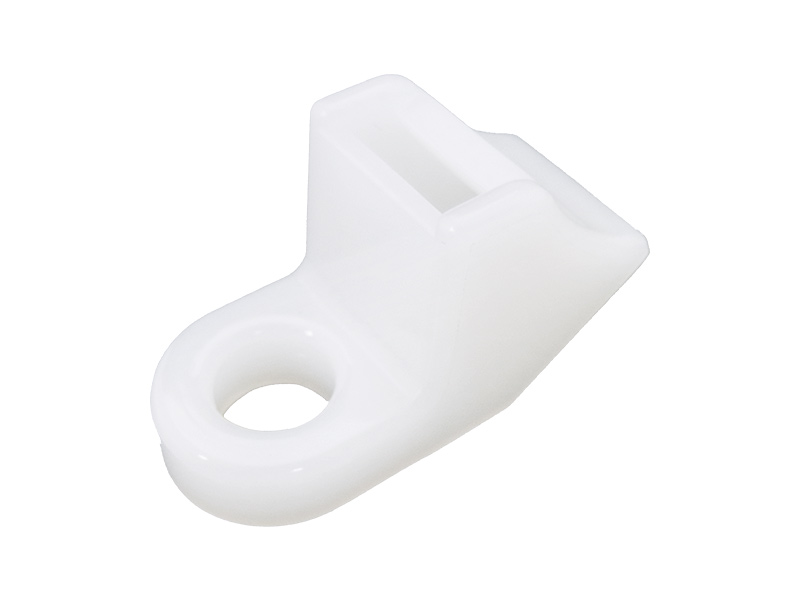

THMA-1

Screw Mount Cable tie holder for maximum Cable Tie width 8.4mm. Nylon 66. Available in Natural and Black

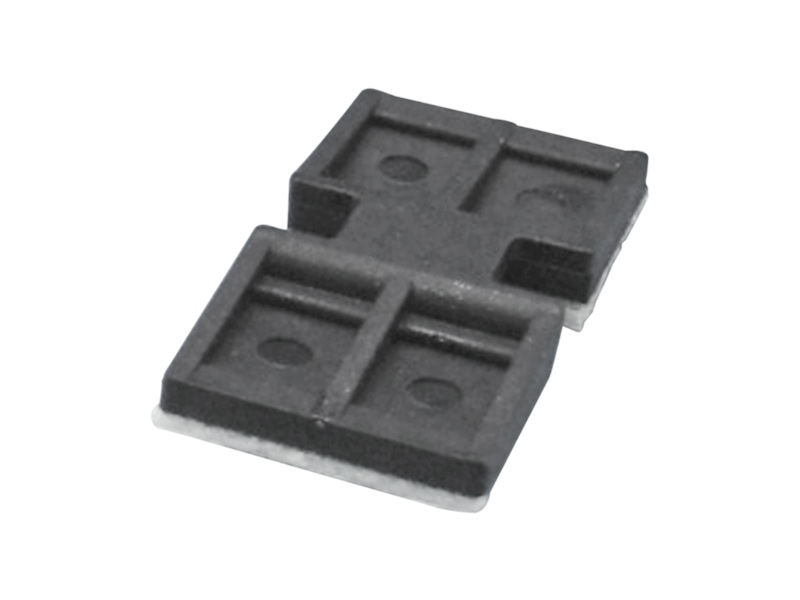

THU-1

Adhesive Cable tie mount (LxW) 24.2x12mm for maximum Cable Tie width 4.8mm. Nylon 66. Available in Natural and Black

THU-2

Adhesive Cable tie mount (LxW) 14x12mm for maximum Cable Tie width 3.6mm. Nylon 66. Available in Natural and Black

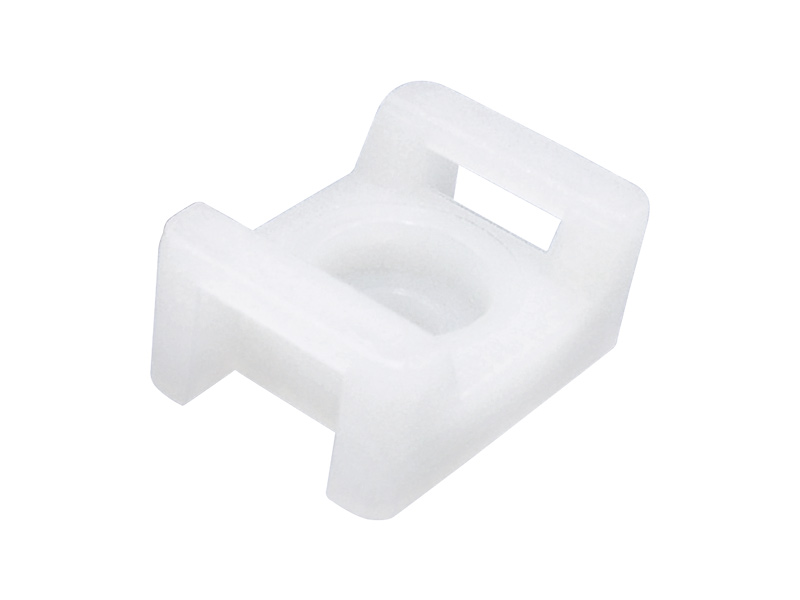

TM-2S6

Cable Tie Base 14.9x9.6mm Screw or Rivet Mount. Height 7.2mm. For Max. Cable Tie width 5.6mm. Screw hole dia. Ø3.7mm. Material Nylon 66. Available in Natural or Black

TM-2S8

Cable Tie Base 14.9x9.6mm Screw or Rivet Mount. Height 7.2mm. For Max. Cable Tie width 5.6mm. Screw hole dia. Ø4.5mm. Material Nylon 66. Available in Natural or Black

TM-3S10

Cable Tie Base 22.0x16.0mm Screw or Rivet Mount. Height 9.6mm. For Max. Cable Tie width 9.2mm. Screw hole dia. Ø4.8mm. Material Nylon 66. Available in Natural or Black

TM-3S25

Cable Tie Base 22.0x16.0mm Screw or Rivet Mount. Height 9.6mm. For Max. Cable Tie width 9.2mm. Screw hole dia. Ø6.4mm. Material Nylon 66. Available in Natural or Black

TM-3S8

Cable Tie Base 22.0x16mm Screw or Rivet Mount. Height 9.6mm. For Max. Cable Tie width 9.2mm. Screw hole dia. Ø4.5mm. Material Nylon 66. Available in Natural or Black

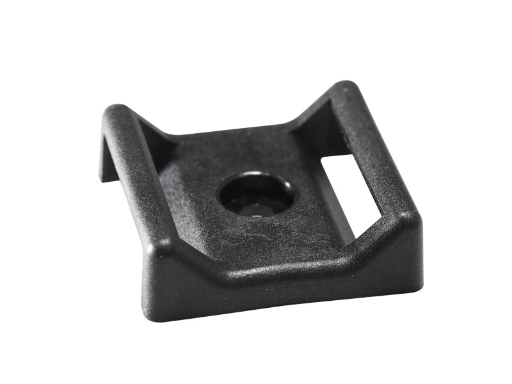

TM-4

Cable Tie Base 19.5x9.5mm Screw or Rivet Mount. Height 8.65mm. For Max. Cable Tie width 21.85mm. Screw hole dia. Ø3.8mm. Material Nylon 66. Available in Natural or Black
