LEK-303L

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1) with Centerpin. Centerline 3.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEK-304

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 6.4mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

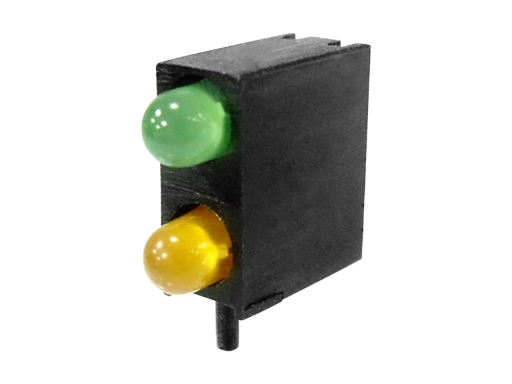

LEK-307

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED with Centerpin. Centerline bottom LED 2.65mm. Centerline top LED 7.65mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

LEK-310

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 6.35mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

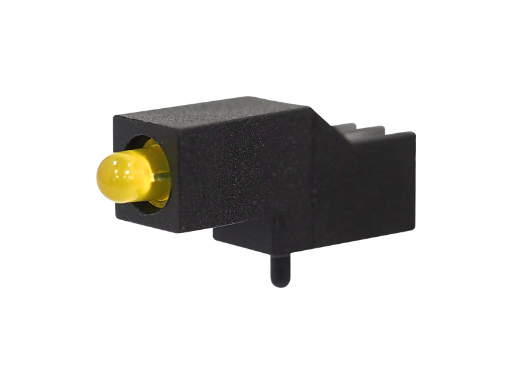

LEK-311

LED Holder PA66 Right Angle PCB Mount for LED size 3mm(T-1) with Centerpin. Centerline 6.0mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

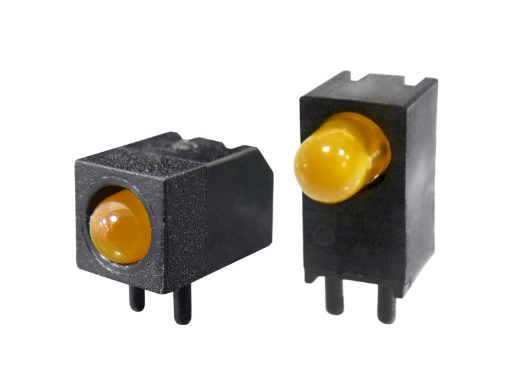

LEK-3111

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 2.5mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

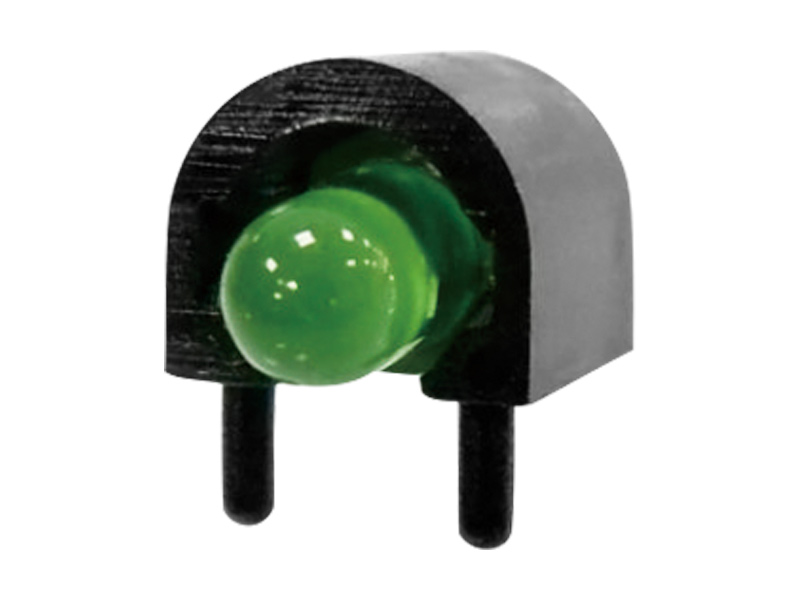

LEK-312

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1) with 2 Centerpins. Centerline 2.1mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEK-314

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 3.05mm. The 2 Centerpins avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

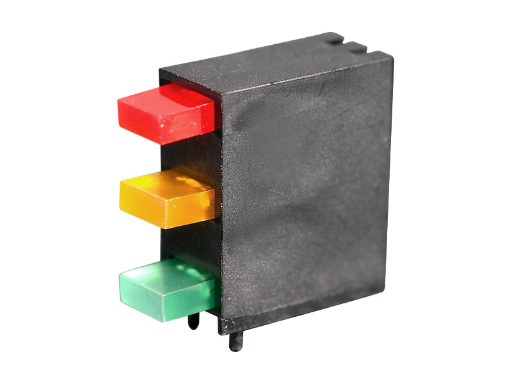

LEK-315

Right Angled 3 stack LED holder for Rectangular LED size 5x2mm with 2 Centerpins. Centerline bottom LED 2.7mm. Distance between LED's 6.0mm. The Centerpins keep the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

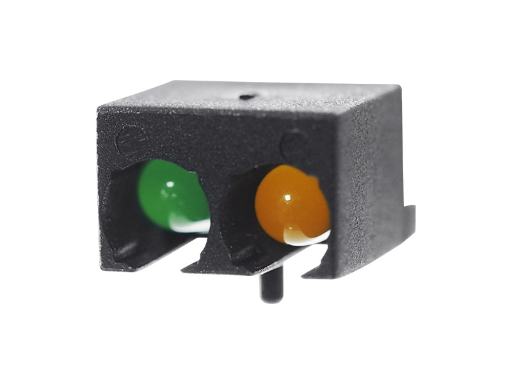

LEK-316

Right Angled horizontal LED holder for 2 T-1 (3mm) LED's. with Centerpin. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

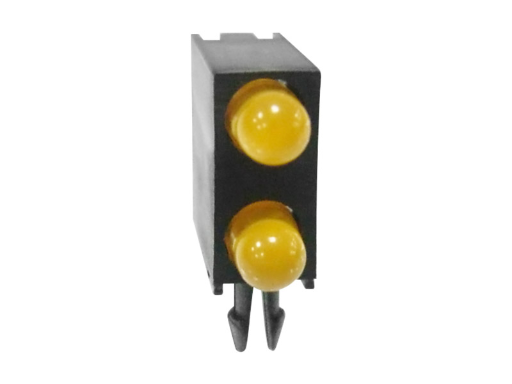

LEK-320

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED with Locking pin. Centerline bottom LED 2.5mm. Centerline top LED 7.58mm. The Locking pin keeps the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

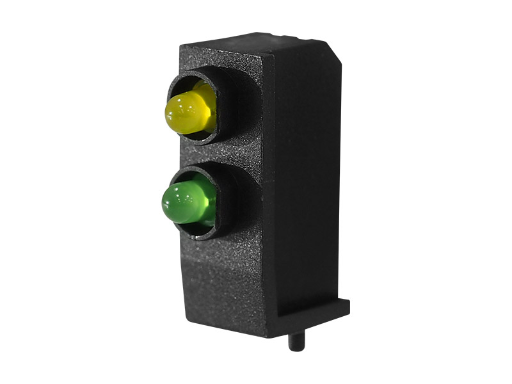

LEK-323

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED with Center pin. Centerline bottom LED 9.85mm. Centerline top LED 16.85mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

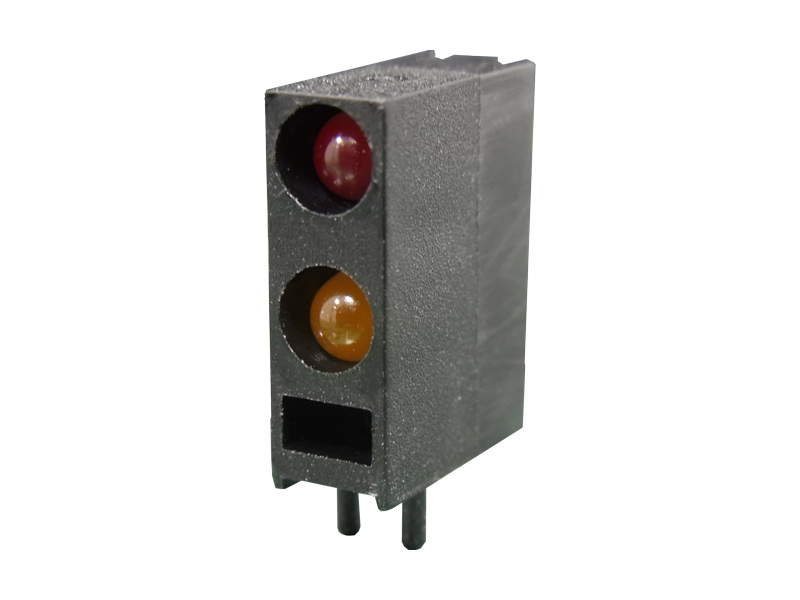

LEK-325

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED with 2 Centerpins. Centerline bottom LED 6.0mm. Centerline top LED 11.0mm. The 2 Centerpins keep the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

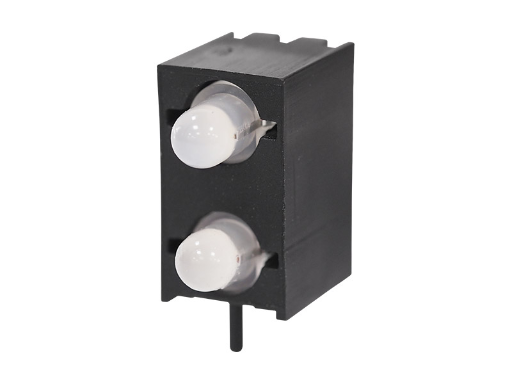

LEK-327

Right Angled vertical 2 stack 3 Lead LED holder for T-1 (3mm) LED. Centerline bottom LED 3mm. Centerline top LED 9.5mm. LED's shown for Demo not included in holder

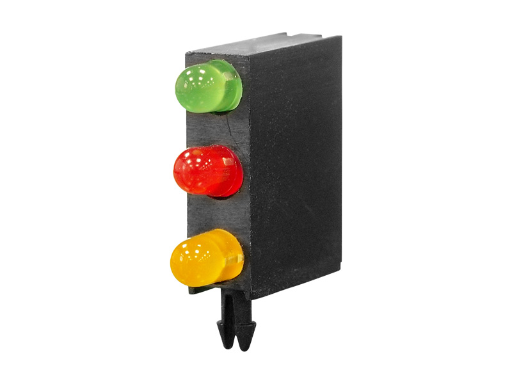

LEK-330

Right Angled 3 stack LED holder for LED size 3mm(T-1) with Locking pin. Centerline bottom LED 2.5mm. Distance between LED's 5.08mm. The Locking pin keeps the holder in place and relieves the stress on the leads of the LEDLED's shown for Demo not included in holder

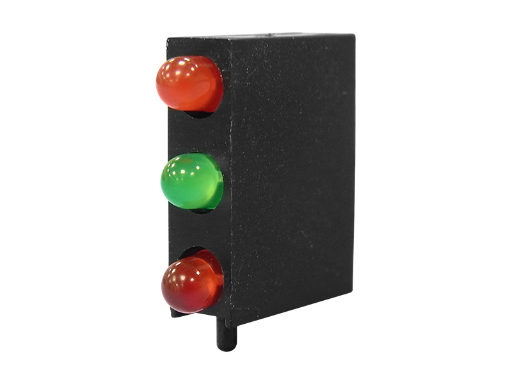

LEK-331

Right Angled 3 stack LED holder for LED size 3mm(T-1) with Centerpin. Centerline bottom LED 2.54mm. Distance between LED's 5.08mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LEDLED's shown for Demo not included in holder

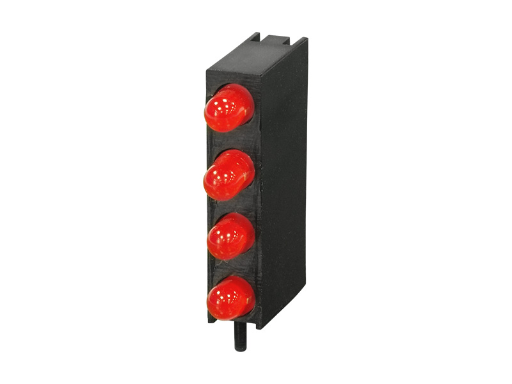

LEK-340

Right Angled 4 stack LED holder for LED size 3mm(T-1) with Centerpin. Centerline bottom LED 2.54mm. Distance between LED's 5.08mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LEDLED's shown for Demo not included in holder

LEK-345

Right Angled vertical 2 stack LED holder for T-1 (3mm) LED with 2 Centerpins. First stack is designed for 3 leads. Centerline bottom LED 3.85mm. Centerline top LED 8.94mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

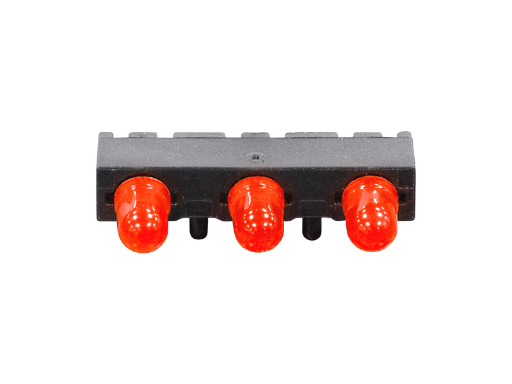

LEK-348

Right Angled Horizontal LED holder for 3 LED's size 3mm(T-1) with 2 Centerpins. Distance between LED's 6.5mm. The 2 Centerpin keep the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

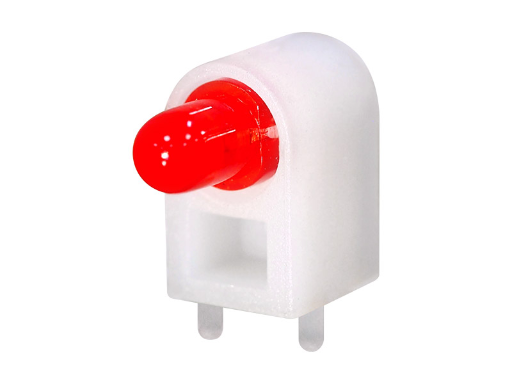

LEK-349

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 6.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

LEK-350

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 8.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

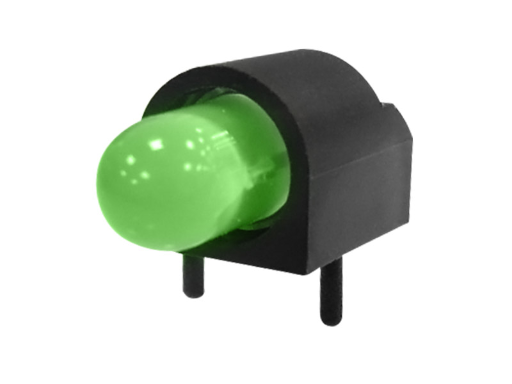

LEK-501

LED Support PA66 Right Angle PCB Mount for a 3 lead LED size 5mm(T-1¾). with 2 Centerpins. Centerline 3.8mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

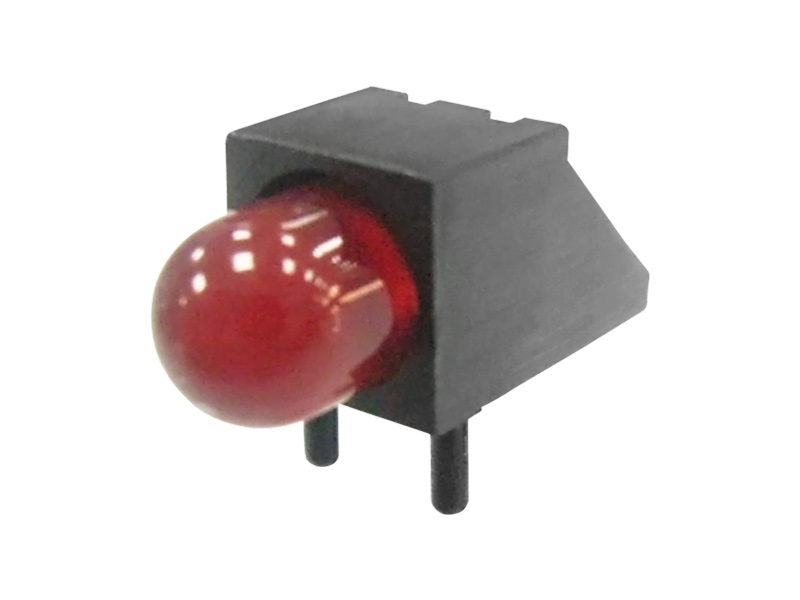

LEK-502

LED Holder Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Centerpins. Centerline 3.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

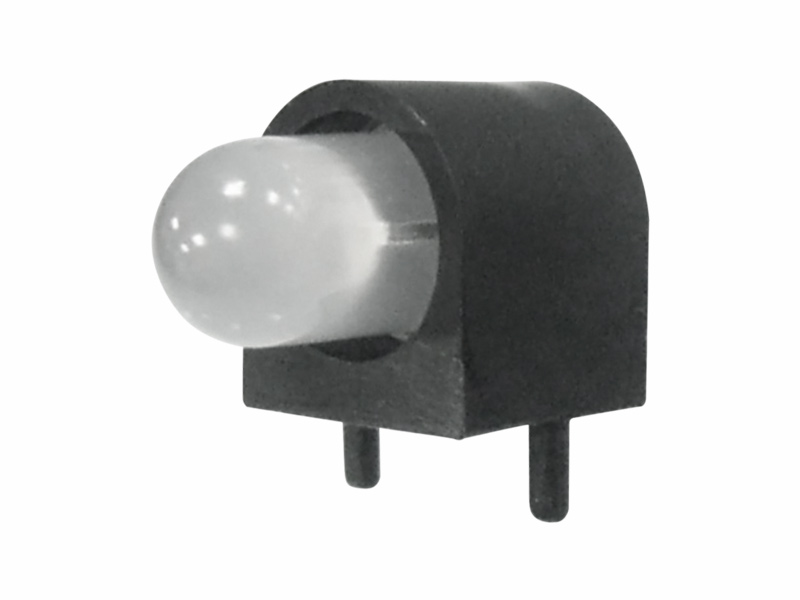

LEK-503

LED Support PA66 Right Angle PCB Mount for a 3 lead LED size 5mm(T-1¾). with 2 Centerpins. Centerline 4.5mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEK-505

LED Support PA66 Right Angle PCB Mount for a 3 lead LED size 5mm(T-1¾). with 2 Centerpins. Centerline 6.05mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

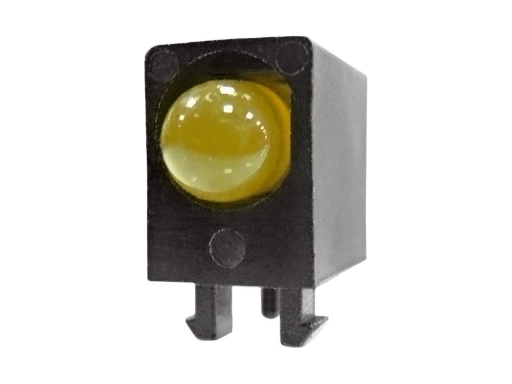

LEK-506

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Locking & Center Pin. Centerline 6.0mm. The Locking & Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo

LEK-507

LED Support PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Centerpins. Centerline 4.5mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

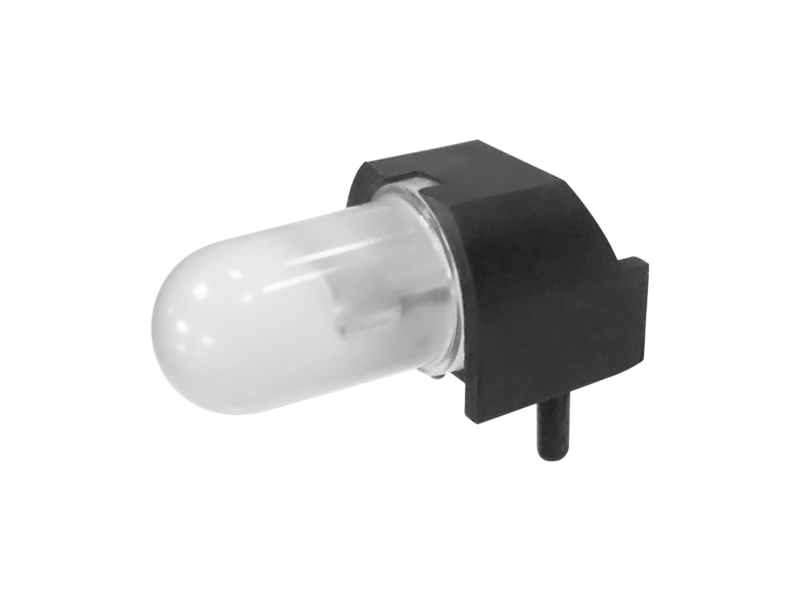

LEK-508

LED Support PA66 Right Angle PCB Mount for a 3 lead LED size 5mm(T-1¾). with 2 Centerpins. Centerline 3.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEK-512

Right Angled vertical 2 stack LED holder size 5mm(T-1¾) LED with 2 Locking pins. Centerline bottom LED 3.1mm. Centerline top LED 9.0mm. The Locking Pins keep the holder firm and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

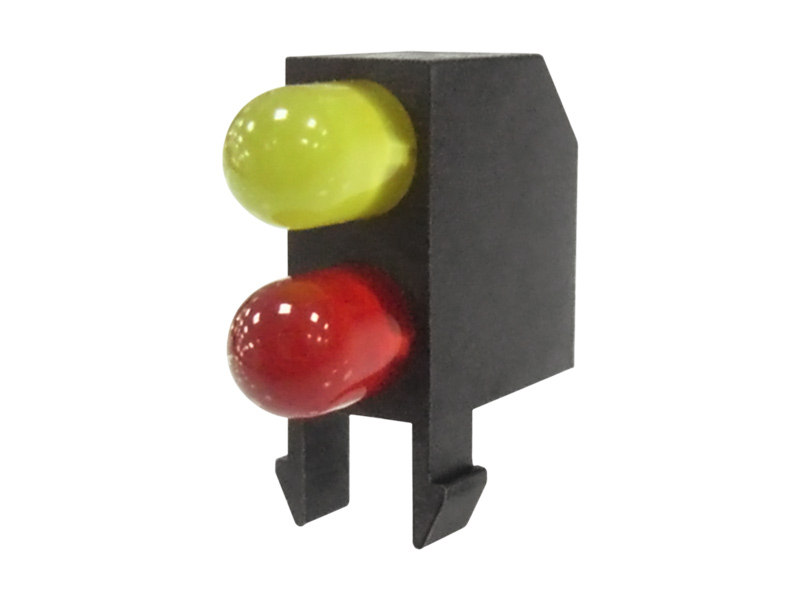

LEK-515

Right Angled vertical 2 stack LED holder for size 5mm(T-1¾) LED with 2 Locking pins. Centerline bottom LED 3.1mm. Centerline top LED 9.4mm. The Locking Pins keep the holder firm and relieves the stress on the leads of the LED. LED's shown for Demo not included in

LEK-516

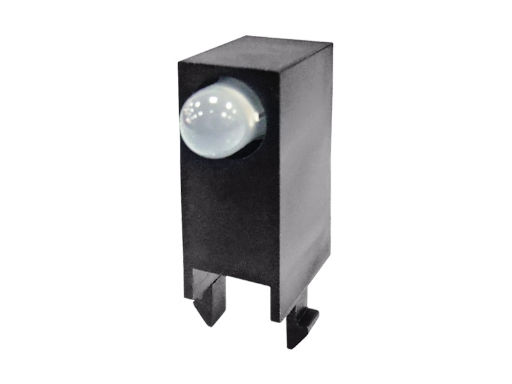

LEK-517

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾). with 2 Locking pins. Centerline 15.0mm. The 2 Locking pins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

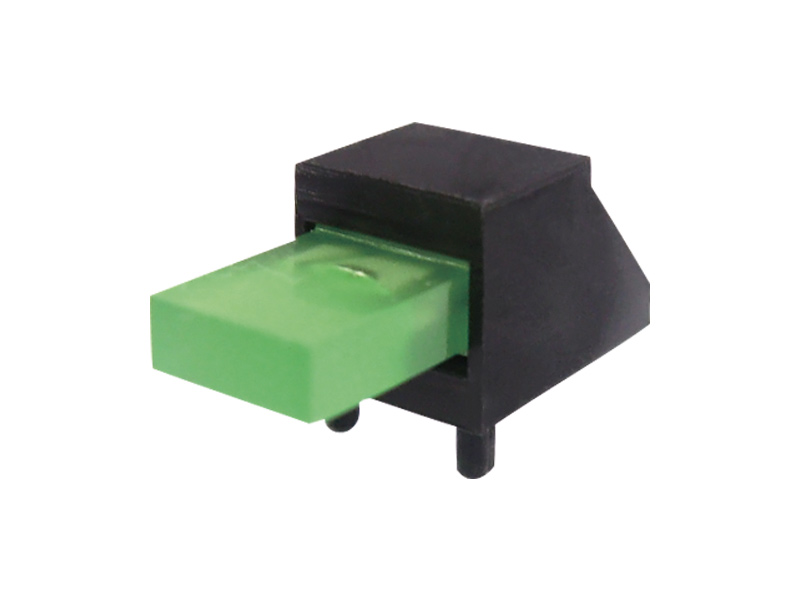

LEK-518

LED Holder Right Angle PCB Mount for 3 lead Rectangular LED size 5 x 2mm. with 2 Centerpins. Centerline 3.15mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

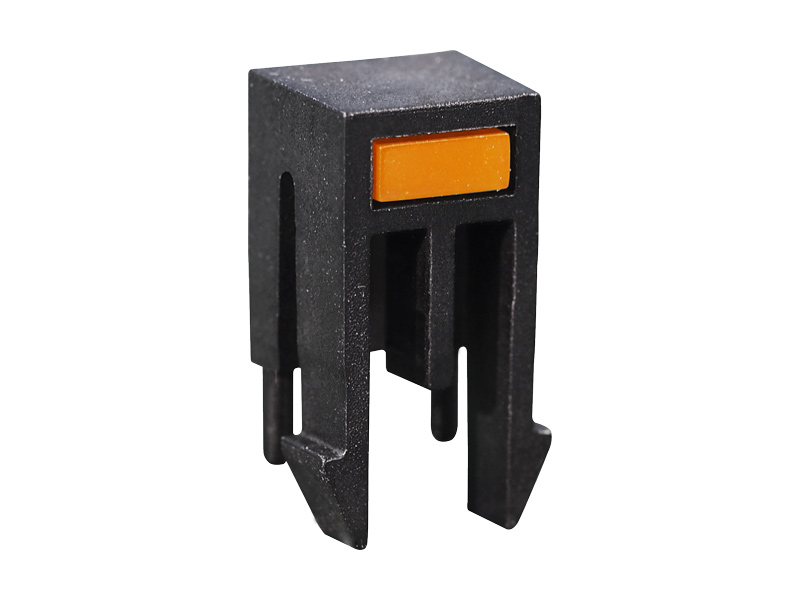

LEK-520

LED Holder Right Angle PCB Mount for Rectangular LED size 5 x 2mm. with 2 Locking & 2 Centerpins. Centerline 7.75mm. The 2 Locking & Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

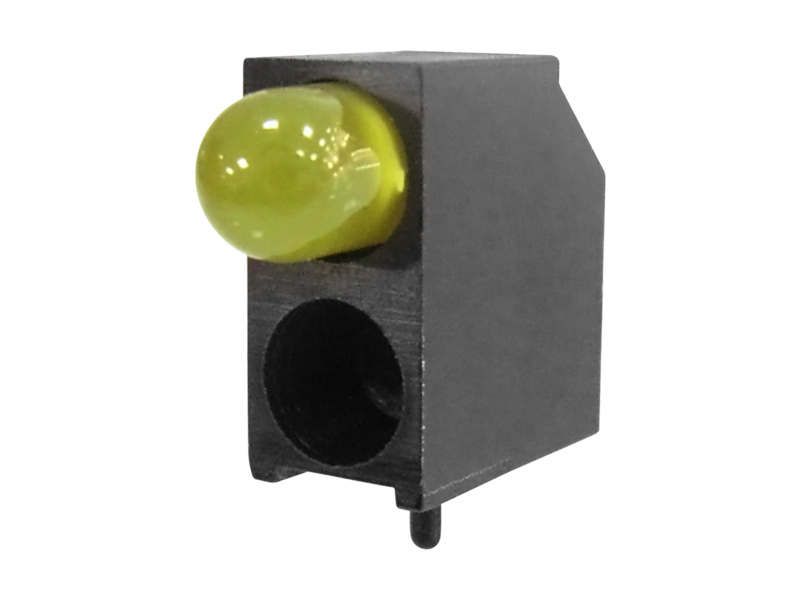

LEK-525

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 9.6mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

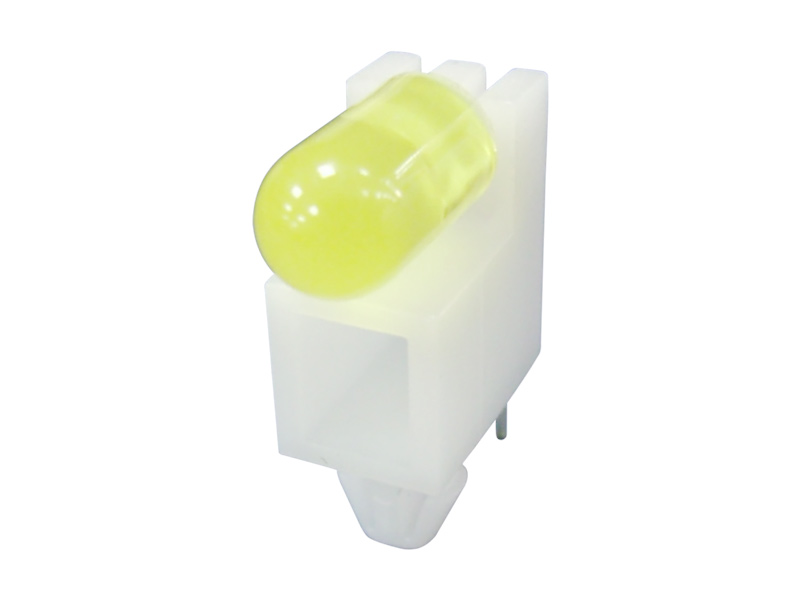

LEK-526

LED Support POM Right Angle PCB Mount for LED size 5mm(T-1¾) with Arrowhead for holesize Ø3.5mm. Centerline 7.5mm. The Arrowhead keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

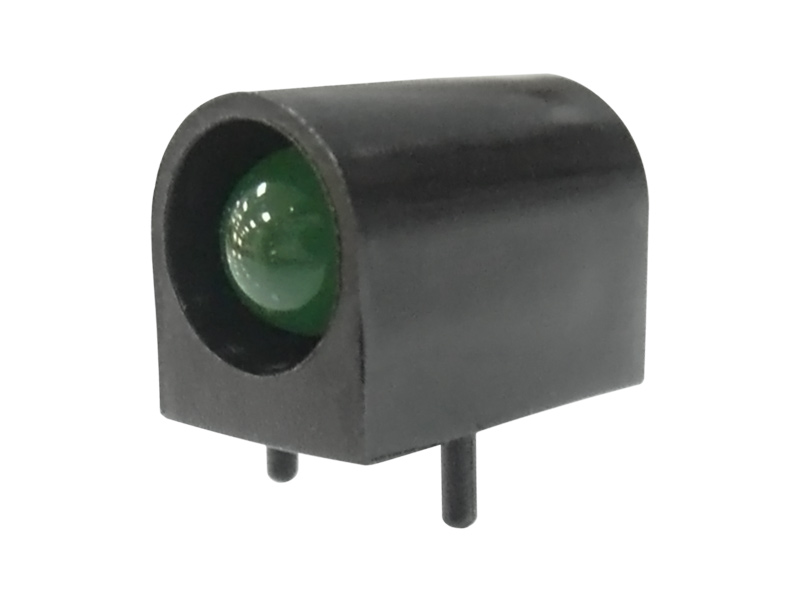

LEK-528

LED Holder Right Angle PCB Mount for 2 & 3 lead LED size 5mm(T-1¾). with 2 Centerpins. Centerline 5.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

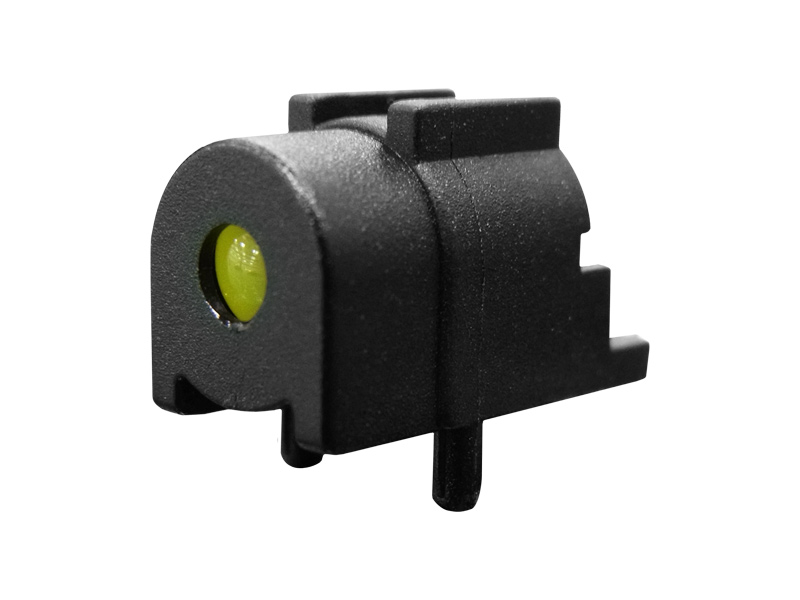

LEK-533

LED Holder Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Centerpins. Centerline 4.25mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

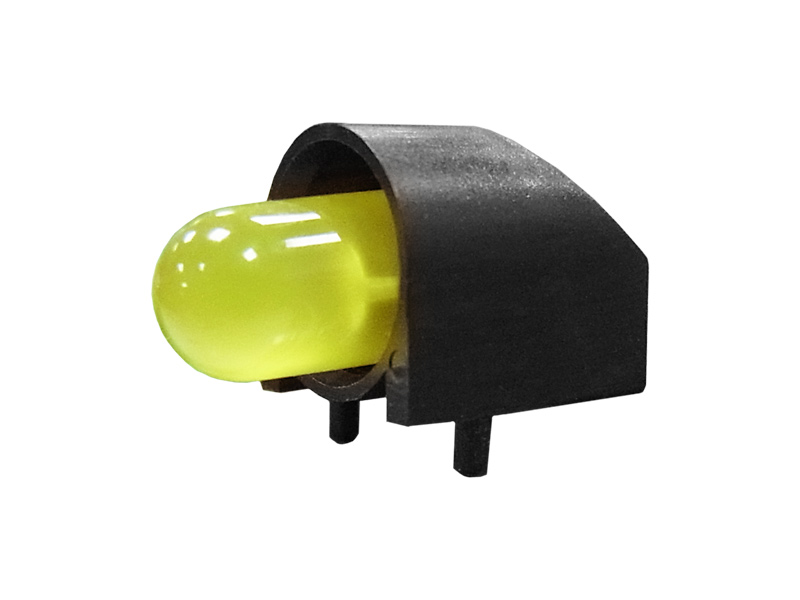

LEK-534

LED Holder Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Centerpins. Centerline 4.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

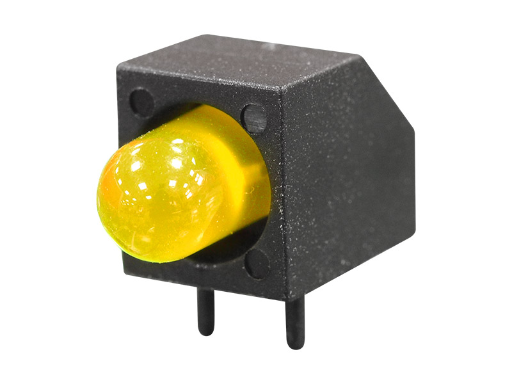

LEK-535

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 4.5mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

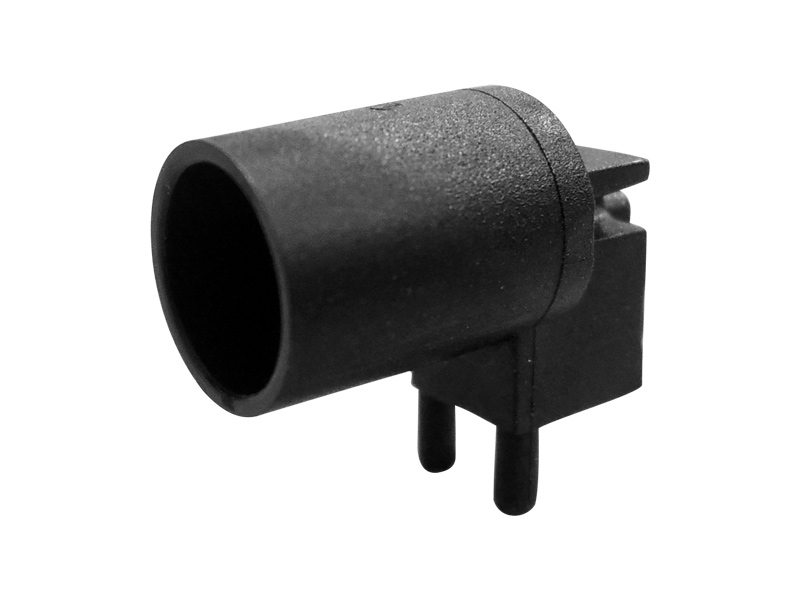

LEK-539

LED Holder Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Centerpins. Centerline 6.2mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

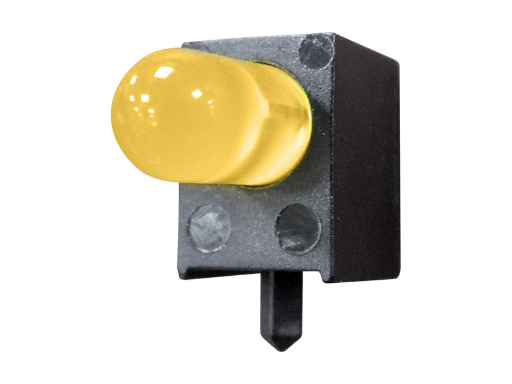

LEK-541

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Centerpin. Centerline 6.35mm. The Centerpin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

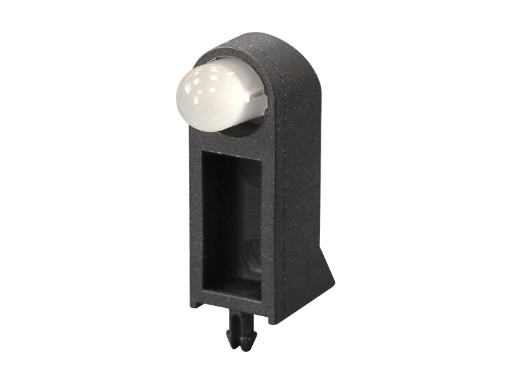

LEK-546

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with Locking pin. Centerline 17.1mm. The Locking pin keeps the holder in place and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

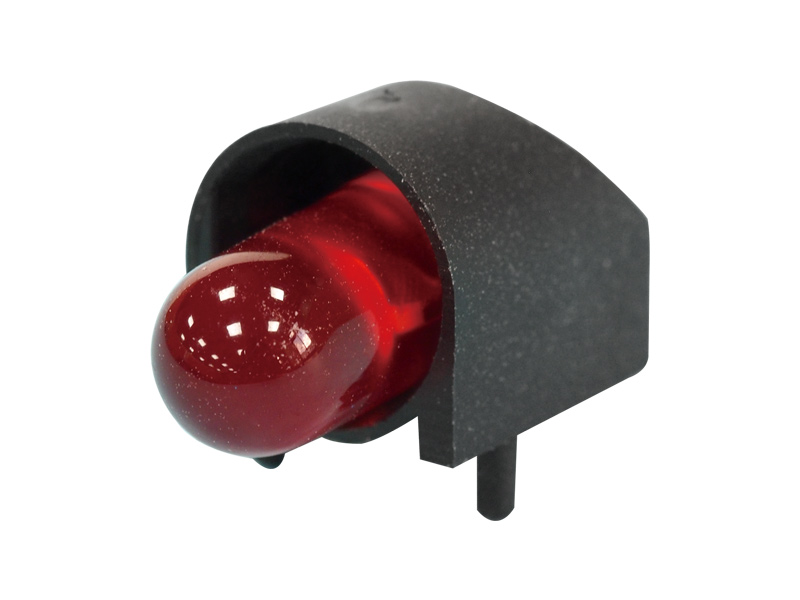

LEK-547

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 3.7mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

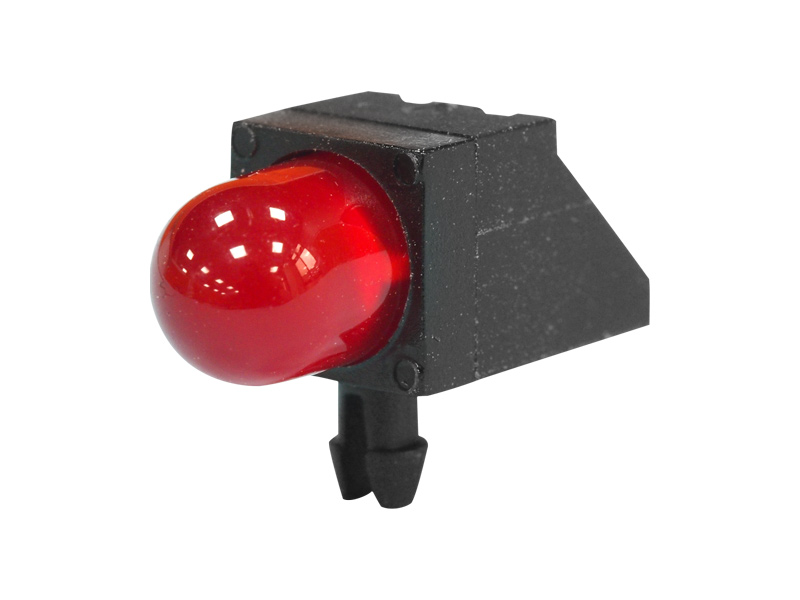

LEK-548

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with Locking pin. Centerline 3.0mm. The Locking pin avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

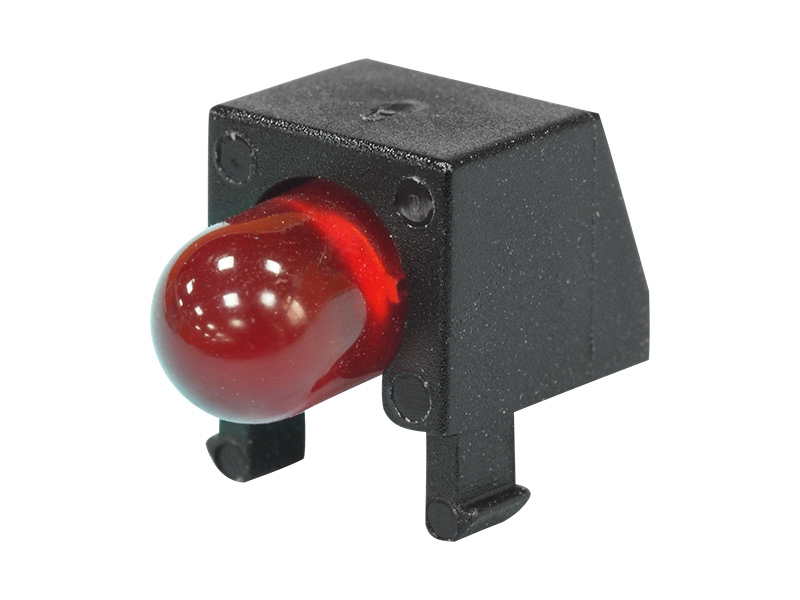

LEK-549

LED Support PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Locking pins. Centerline 3.0mm. The Locking pins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

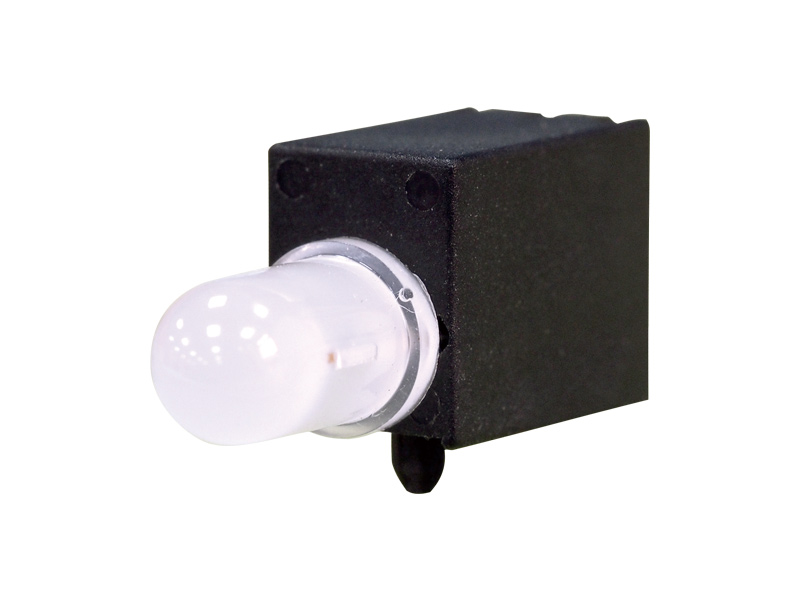

LEK-551

LED Holder PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾) with Centerpin. Centerline 3.5mm. The Centerpin avoids the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

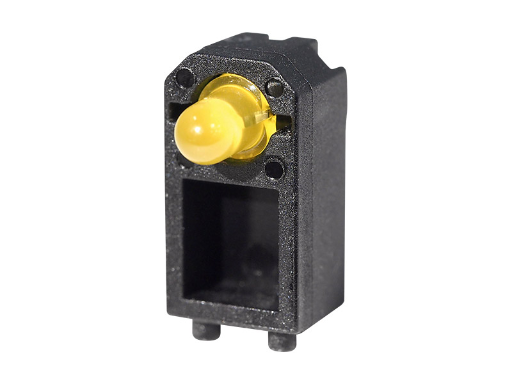

LEK-555

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 3mm(T-1) with 2 Centerpins. Centerline 10.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

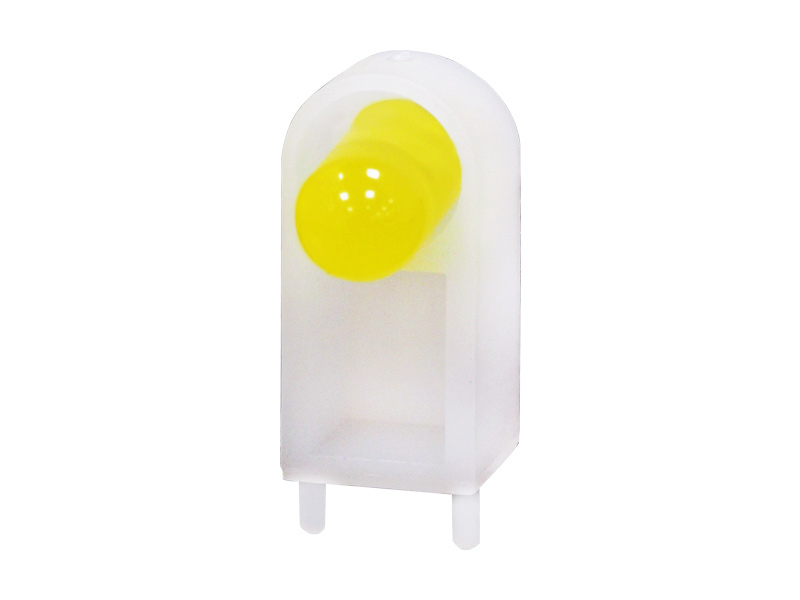

LEK-556

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 12.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED. LED's shown for Demo, not included in holder

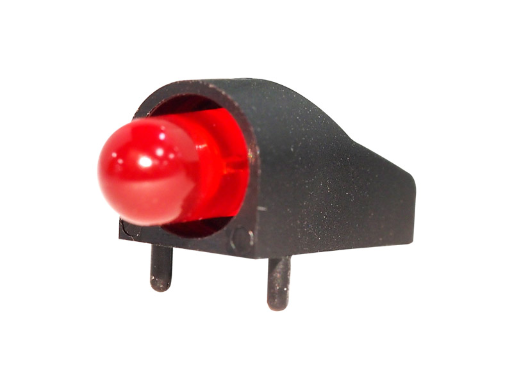

LEK-560

LEK-561

LEK503-18

LED Support PA66 Right Angle PCB Mount for 3 lead LED size 5mm(T-1¾). with 2 Centerpins. Centerline 18.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

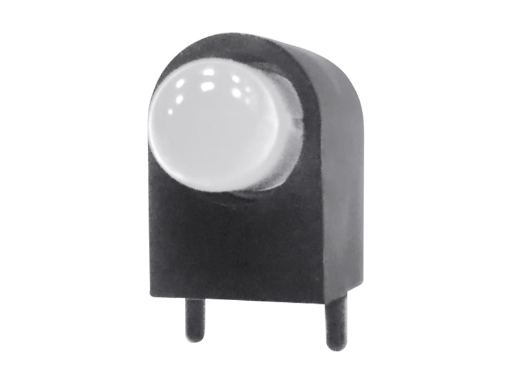

LEK503-7

LED Support PA66 Right Angle PCB Mount for LED size 5mm(T-1¾). with 2 Centerpins. Centerline 7.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

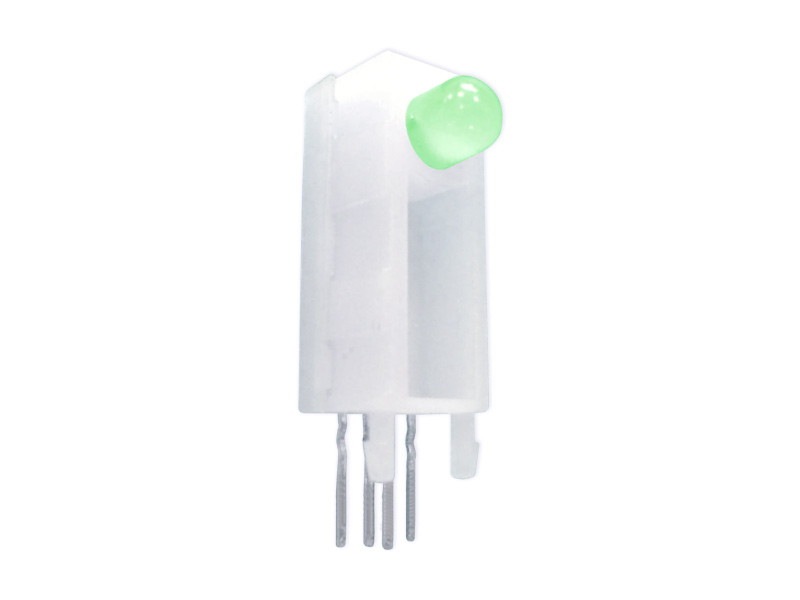

LEK54-17

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1). with 2 Locking pins. Centerline 17.0mm. The Locking pins keep the holder in place and relieves the stress on the leads of the LED. LED's shown for Demo not included in holder

LEKH-10

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 10.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

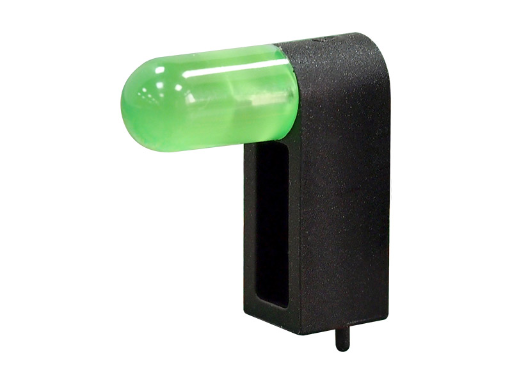

LEKH-12

LED Support PA66 Right Angle PCB Mount for LED size 3mm(T-1) with 2 Centerpins. Centerline 12.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo, not included in holder

LEKH-3

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 3.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

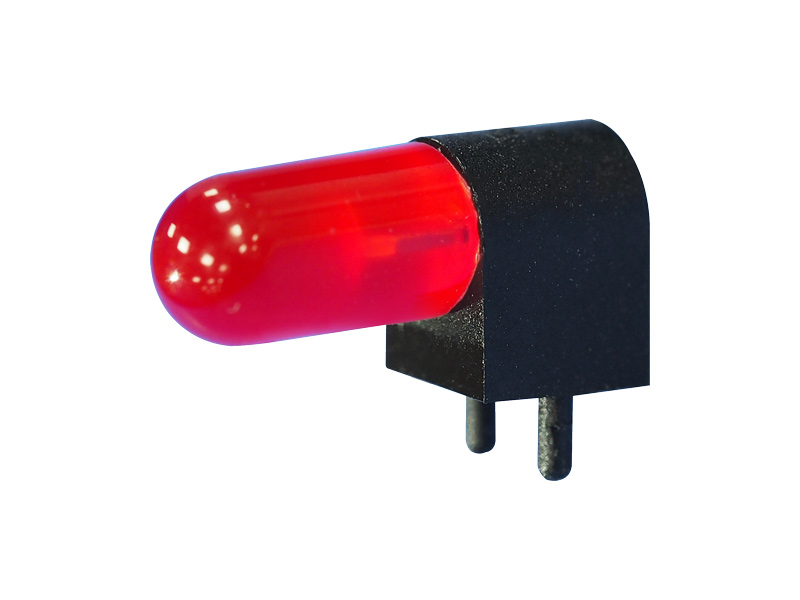

LEKH-4.5

LEKH-4.5S

LEKH-6

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 6.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEKH-6301

LED Holder Right Angle PCB Mount for Rectangular LED. with Locking Pin and Interlocking feature. Centerline 10.0mm.The Locking Pin relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEKH-7

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 7.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

LEKH-9

LED Holder PA66 Right Angle PCB Mount for LED size 5mm(T-1¾) with 2 Centerpins. Centerline 9.0mm. The 2 Centerpins avoid the holder from turning and relieves the stress on the leads of the LED . LED's shown for Demo not included in holder

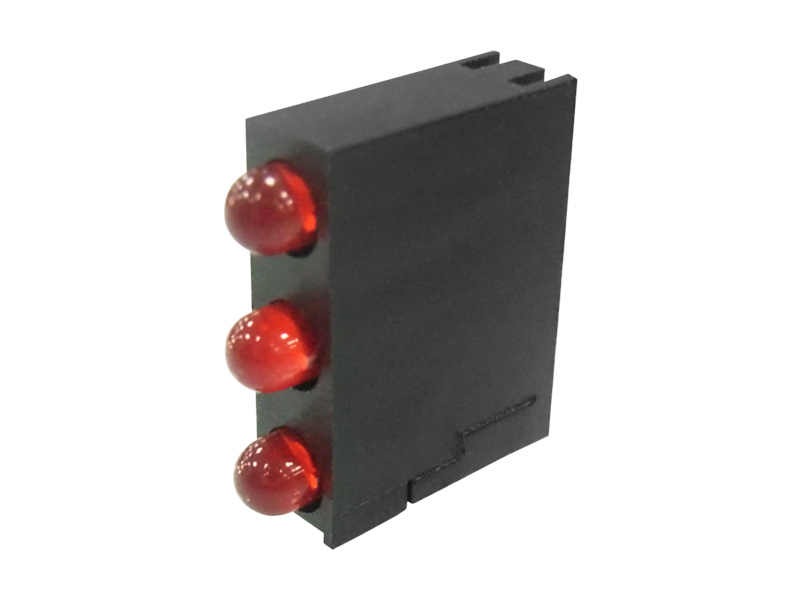

LH-330

Right Angled 3 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.5mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

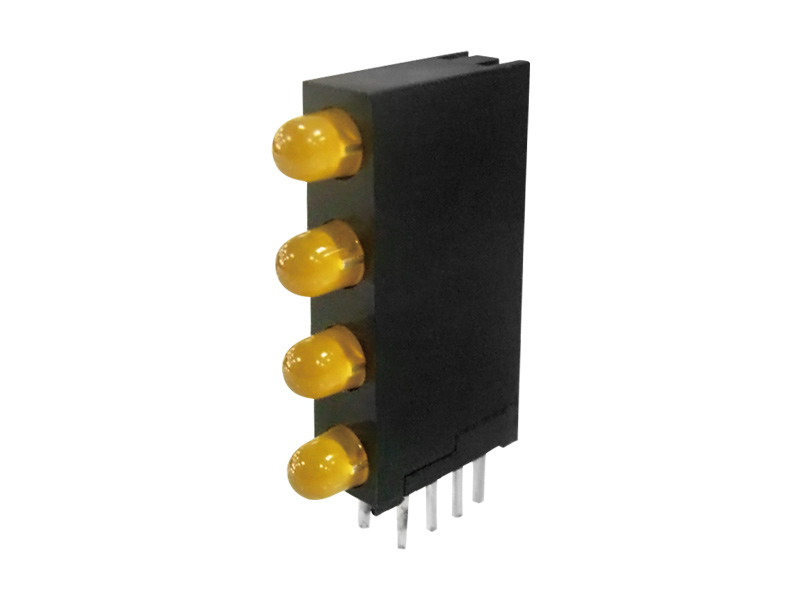

LH-340

Right Angled 4 stack LED holder for LED size 3mm(T-1). Centerline bottom LED 2.54mm. Distance between LED's 5.08mm. LED's shown for Demo not included in holder

Product Type

LED Ø (mm)

Number of Leads

Centerline (mm)

Stack Height (mm)

Interlocking Feature

Material

Color

Flammability Class
