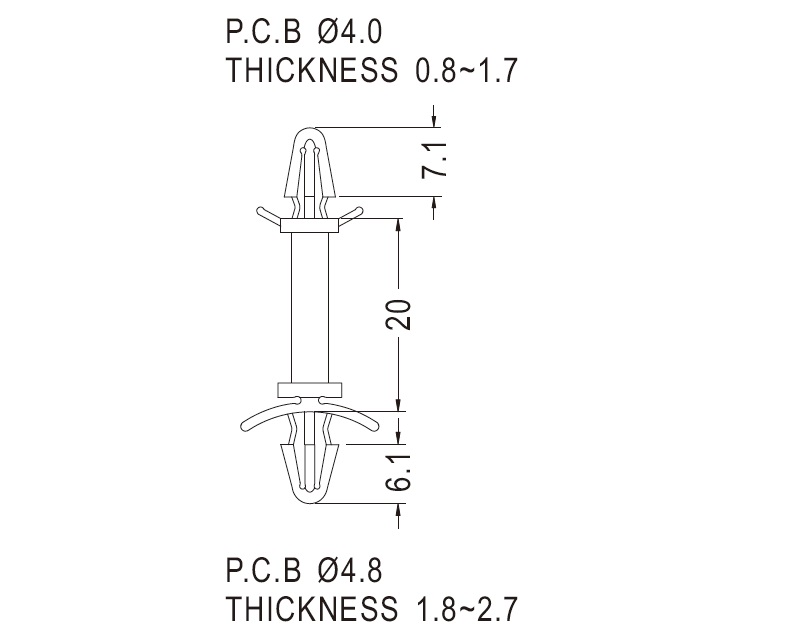

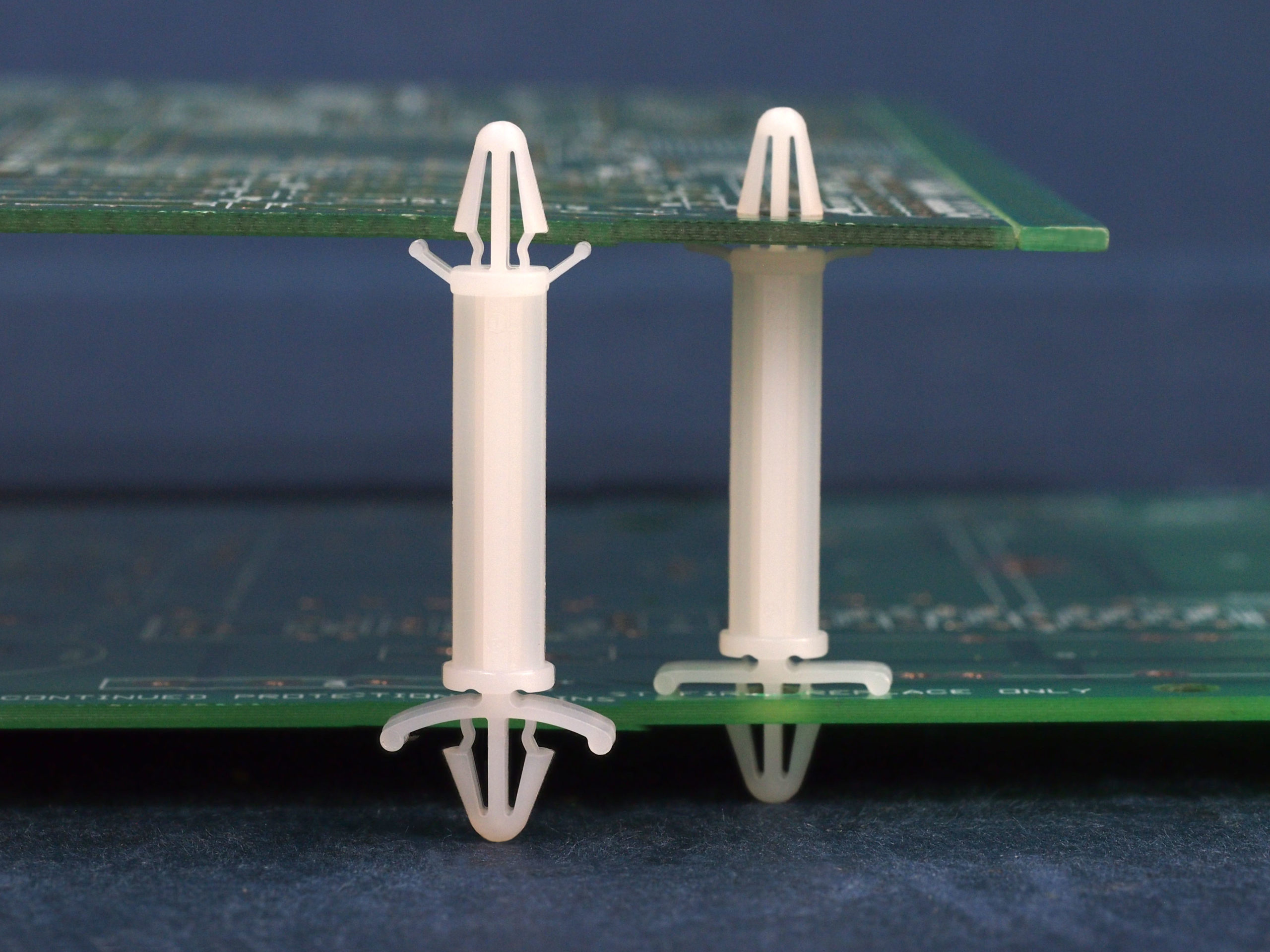

Arrowhead dual locking support post with tension wings. For a top hole of 4 mm and a bottom hole of 4.8 mm. Spacer length is 20 mm.
Part no.LCBSA-20L
TypeSpacer
MaterialNylon 66
Flammability class94V-2 / 94V-0
ColorNatural/Black
Download 2D product drawing (PDF) Download 3D product drawing (CAD)
| Part no. | Material | Color | A Length |
Package |
|---|---|---|---|---|
| LCBSA-20L | Nylon 66 | Natural/Black | 20.0 | 500 |
| LCBSA-28.5 | Nylon 66 | Natural/Black | 28.5 | 500 |
